SCV Lever Detent Operation
Knob Position
Function of Lever Detent
Turn Counterclockwise to Detent Stop (A)
Continuous Detent-Lever must be manually returned to neutral
Center (B)
No Detent-Lever returns to neutral when released
Turn Clockwise to Detent Stop (C)
Automatic Detent-Lever returns automatically when cylinder reaches end of stroke

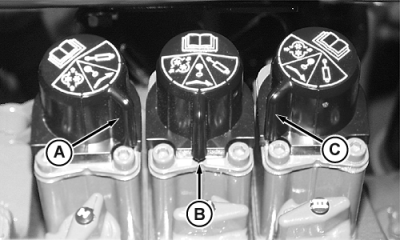

A-Detent Stop
B-Center
C-Detent Stop
Viewed From Cab
