Lubricating Rear Axle Bearings

SERVICE INTERVAL - 750 HOURS *
* Daily or Every 10 Hours if operated in extremely wet or dusty conditions



Apply grease to each fitting until grease appears at seals, or a maximum of 25 shots.

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

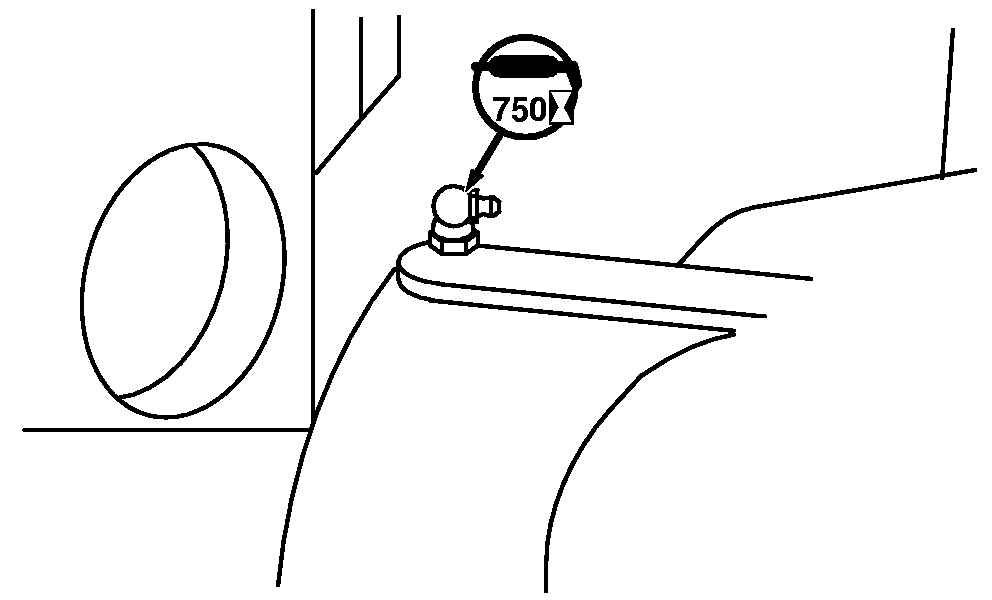

RXA0068460

Left-Hand Side Shown

AG,RF30435,2711 -19-08APR05-1/1
