Operating Loader Using SCV
CAUTION:
Help prevent personal injury or death caused by objects falling on the operator. When using SCV to operate loader (tractor not equipped with single-lever control), SCV must be in loader (no detent) position (A). Movement of the control lever to the detent position may cause the loader to raise to full height unexpectedly and the load to fall back on the operator.

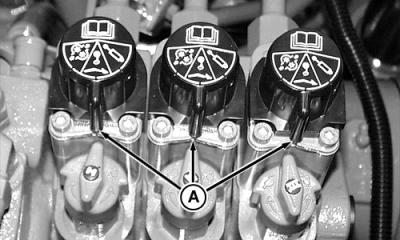

A-No Detent Position
|
No Detent Position (Viewed From Cab)
|
