Adjusting Rate of Cylinder or Motor Operation

causym CAUTION: Excessive operating speed may cause injury or machine damage.

NOTE: If metering valve knob is difficult to turn, check for dirt build-up below the knob.

Adjust rate of operation by turning the metering valve knob (A).

  • Counterclockwise-Increases the rate
  • Clockwise-Decreases the rate

NOTE: Reducing oil flow rate may be required with some implements if detent kicks out before end of cycle.

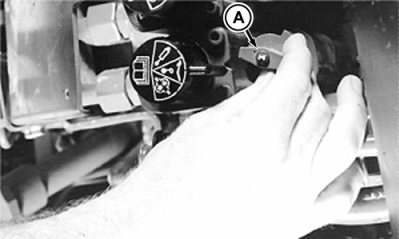

RW21395A


A-Metering Valve Knob
