Using Clevis Assembly Cat 2 Drawbar

IMPORTANT: Remove clevis assembly before attaching PTO-driven equipment. Clevis may cause interference with PTO shaft.

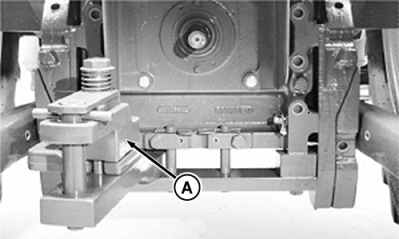

Clevis (A) must be attached ONLY to top of drawbar. If the drawbar is turned over, remove the clevis assembly and attach to top of drawbar.

Connect implement to drawbar, using pin of clevis assembly.


A-Clevis

RW21410A

AG,RX15494,3462 -19-20MAY05-1/1
