Checking MFWD Wheel Hub Oil Level

SERVICE INTERVAL - 250 HOURS



1. Park tractor on level surface.

2. Turn wheel hubs until the words OIL LEVEL are horizontal.

3. Remove plug (A). Oil level should be just below plug hole.

4. If low, add oil through same hole. John Deere HY-GARD oil is recommended. (See MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants and Coolant section.)

5. Apply pipe sealant with TEFLON, or equivalent, to threads of plug.

6. Install the plug and tighten to specifications.

Specification

Plug-to-Hub -Torque 70 N·m (52 lb-ft)

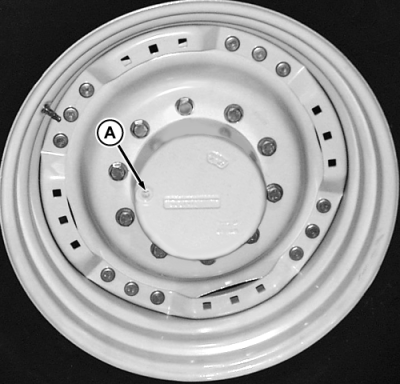

RW26474


A-Plug

AG,RX15494,3547 -19-22MAR05-1/1
