Changing MFWD Hub Oil

SERVICE INTERVAL - 1500 HOURS



1. Park tractor on level surface.

2. Rotate wheel until drain/fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain/fill plug positioned horizontally after oil has drained.

4. Add John Deere HY-GARD oil as specified in MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants and Coolant section, through drain/fill hole until oil is even with bottom of hole.

5. Apply pipe sealant with TEFLON, or equivalent, to threads of plug.

6. Install the plug and tighten to specifications.

Specification

Standard Hub -Capacity 1.9 L (2.0 qt)
Heavy Duty Axle Hub -Capacity 3.8 L (4.0 qt)
Plug-to-Hub -Torque 70 N·m (52 lb-ft)

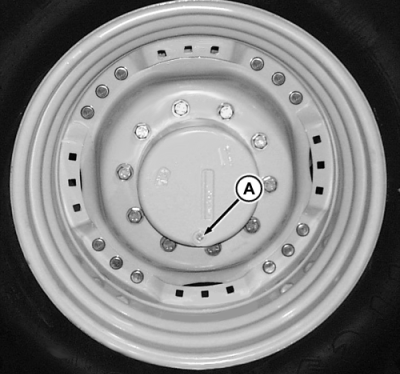

RW26479


A-Drain/Fill Hole

AG,RX15494,3548 -19-22MAR05-1/1
