GREENSTAR™ System Connections (Early Version)

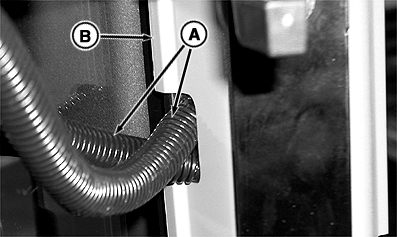

Connectors in conduits (A) for Display Monitor and Mobile Processor are accessed through notch in corner post (B).

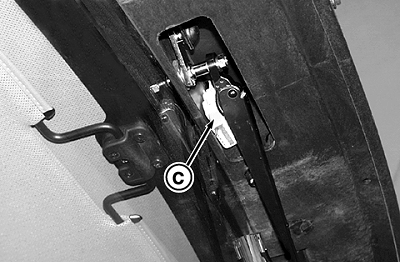

GPS connector (C) is at the front wiper motor.

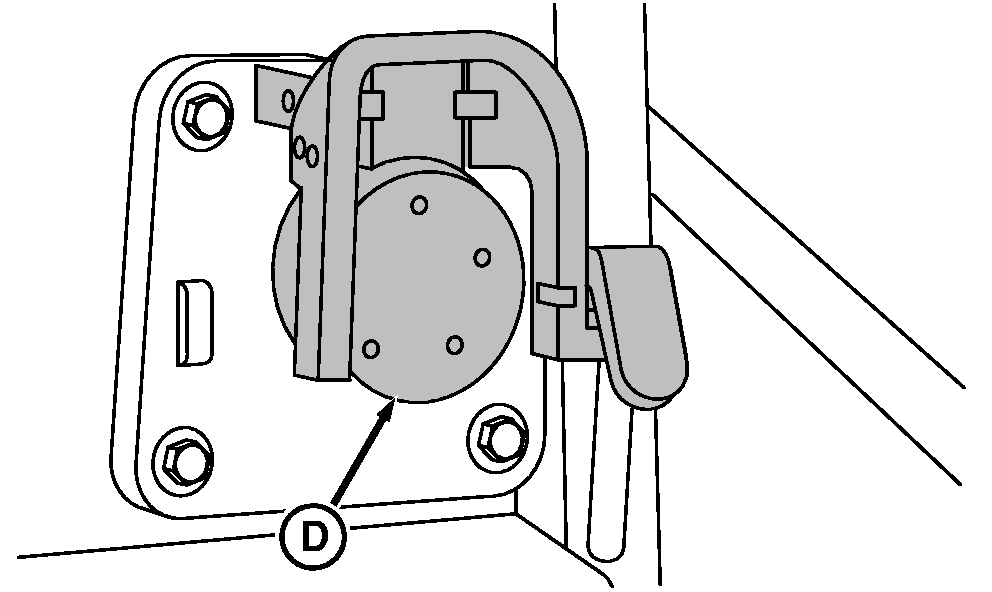

Implement connector (D) is at the rear of the tractor.


A-Display Monitor and Mobile Processor Wire Conduits
B-Corner Post
C-GPS Receiver Connector
D-Implement Connector

RXA0075004
RXA0075005
RXA0075006
