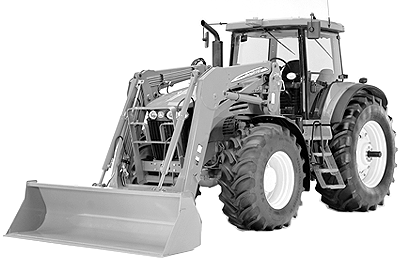

Adding Rear Ballast For Front Loader
 CAUTION:
To help prevent personal injury or death from tractor/loader rollover, add recommended amount of ballast to tractor. The amount of ballast listed is the minimum required for normal loader operation. For some operations, additional ballast may be required to maximize stability. Select one of the following ballasting options.
| Rear Ballasta |
| Loader |
Minimum
Ballast Per Wheel |
Minimum
Ballast On Hitchb |
| 746 |
820 kg (1800 lb) |
951 kg (2092 lb) |
| |
| aMinimum required with rear tread set at 1800 mm (71 in.) or greater. |
| bBallast must be installed 1200 mm (47.25 in.) behind rear axle. |
|
|
