Installing Rear Steel Wheel to Dual Hub

causym CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts.

NOTE: Check the hole sizes on duals, the wheel rim (A) may have one tight fit hole smaller than the other holes. One slot fit hole is 180° from the tight fit hole, for improved wheel centering.

1. Install and hand tighten bolts (A).

2. Tighten all bolts until bolts maintain torque according to specifications.

Specification

Wheel-to-Hub Bolts -Torque 600 N·m (445 lb-ft)

3. Drive tractor 100 meters (100 yd) and retighten bolts.

4. Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

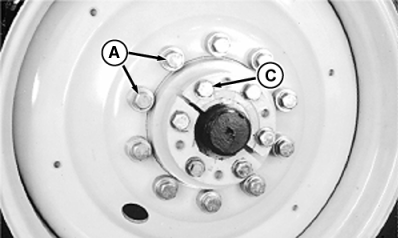

RXA0064144

Standard Hub Shown


A-Wheel to Hub Bolts
