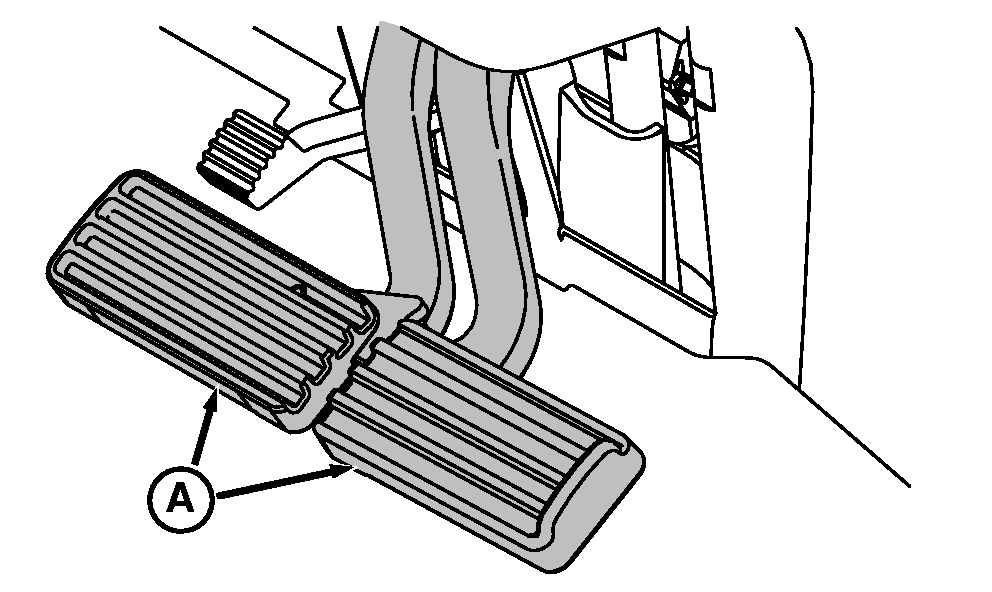

Using Individual Brake PedalsIndividual brake pedals (A) can be used to assist with slow speed off-road turning, such as hooking up to an implement. At low idle, tractor will stop by depressing only one brake pedal. To assist slow speed turning, depress either brake pedal while slowly increasing engine speed until desired turn is achieved. Returning engine speed to low idle while continuing to depress one brake pedal will slow tractor to a stop.
Avoid possible injury due to sudden or unexpected acceleration. When brake pedals are released, the tractor will automatically accelerate to the speed currently commanded by the throttle and speed control lever. |
|
CAUTION:
Avoid possible injury: braking the tractor while commanding a high engine speed will require higher brake pedal force.
OU1092A,0000349 -19-01JUN05-1/1 |
