Using Field Cruise Control
|
|

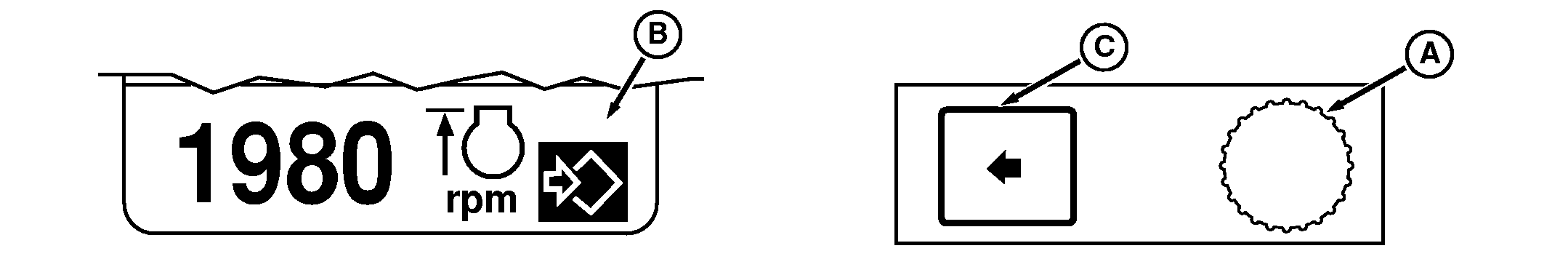

IMPORTANT: Engine must be running for field cruise to operate. NOTE: Field Cruise is available as factory option for tractors equipped with AutoQuad-Plus or AutoPowr transmission. Available as field-installed option for PowrQuad-Plus tractors. Rotate Command dial (A) to bring Field Cruise screen (B) to bottom-half display. Press SELECT key (C), rotate Command dial to raise or lower engine rpm setting as needed, and press SELECT key again. Engine speed can be adjusted from 1350-2200 rpm. Changes to rpm setting take place immediately. Field Cruise utilizes a constant speed governor curve, providing instant response to varying loads. Use of |
Field Cruise will remove availability of power bulge and as such is not recommended for heavy tillage applications.
AutoQuad-Plus (AQ+) PowrQuad-Plus (PQ+): Use field cruise control when controlled ground speed is desired (spraying, fertilizer spreading, seed drilling, etc.). Limiting engine speed in light load situations may improve fuel economy. AutoPowr: Use of the AutoPowr Selector Switch and related CommandCenter settings is the preferred method of controlling engine rpm, but Field Cruise can be considered for certain applications such as PTO operation when baling. |
OU1092A,0000352 -19-19MAY05-1/1 |
