AutoTrac Assisted Steering System (If Equipped)
NOTE:
Electrohydraulic steering is required for AutoTrac to function.
Refer to AutoTrac Operator's Manual for detailed instructions.
-

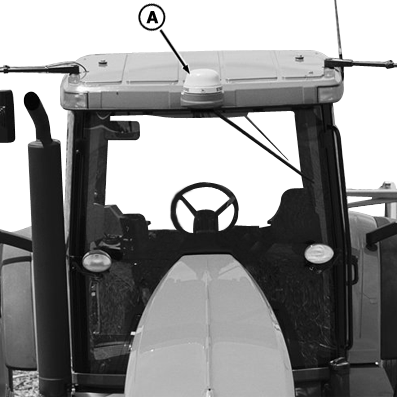

AutoTrac system utilizes StarFire position receiver (A), GreenStar display and mobile processor (B) to assist operator in steering tractor.
-

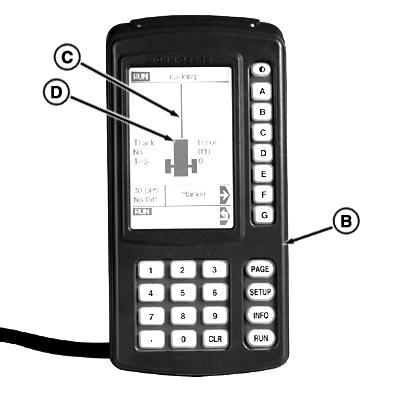

Operator must enter implement width minus overlap desired in GreenStar display, and drive first field pass in a straight line, keeping mark (C) on display in the middle of pictured tractor hood (D). Operator may also enter starting and ending points of desired path.
-
To activate AutoTrac initially, push Resume switch located on CommandArm for tractors with AutoPowr transmission, or on right-hand console for tractors with PowrQuad+ or AutoQuad+ transmission.
-
AutoTrac is a straight-line guidance system. Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.
A-Position Receiver
B-Mobile Processor
C- Mark
D-Tractor Hood
|
|
