AutoPowr Selector Examples
NOTE:
See SETTING AutoPowr OPTIONS and ENGINE SPEEDS-AutoPowr OPTIONS AUTO WITH OR WITHOUT PTO for settings and rpm.
Position 1 - Most PTO, Loader, and High Hydraulic Flow Applications:
-
Use full throttle position
-
Adjust Auto with PTO or Auto - no PTO set speed to match application
-
Operating under load: transmission automatically adjusts ground speed to maintain Heavy Load RPM setting
-
Operating under light load engine speed will be approximately 2000 rpm (Low RPM Default)
Position 2 (Auto 2) - Plowing and Tillage:
-
Use full throttle position
-
Adjust Auto 2 set speed to match application
-
Operating under load: transmission automatically adjusts ground speed to maintain 1950 rpm
-
Operating under light load engine speed is 1500 rpm
Position 3 (Auto 3) - Transport and Light Tillage:
-
Use full throttle position
-
Adjust Auto 3 set speed to match application
-
Operating under load: transmission automatically adjusts ground speed to maintain 1950 rpm
-
Operating under light load: Minimum engine speed is 1200 rpm
Position OFF:
Transmission will not adjust ground speed automatically to maintain engine rpm with varying loads.
-
Use OFF position if application is causing undesired automatic shifting.
-
Use OFF position when operating on steep and/or slippery downhill slopes. (See DOWNHILL OPERATION IN SLIPPERY CONDITIONS in this section.)
|

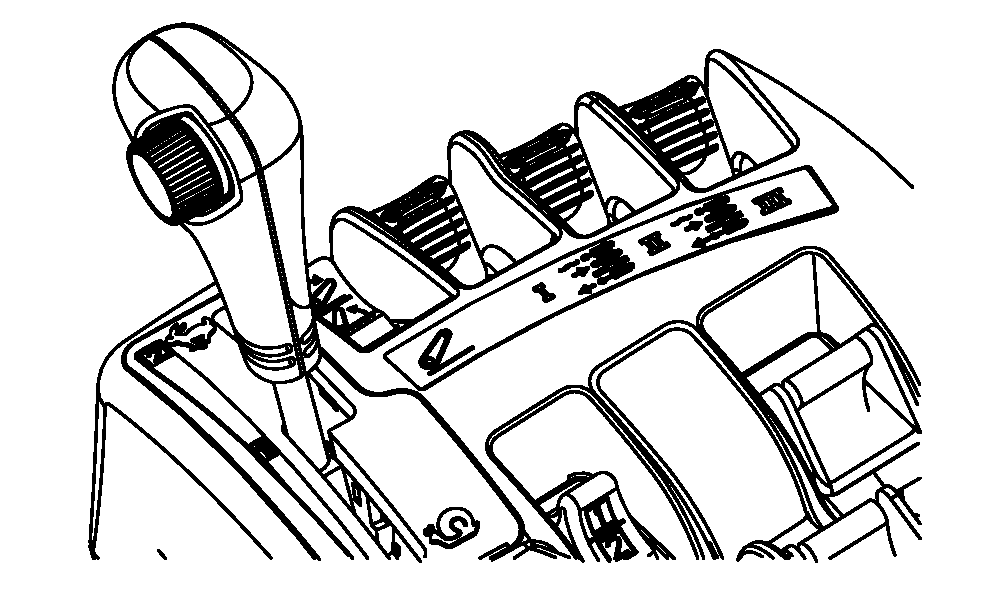

A-Four-Position Switch
B-Position OFF
C-Position 1-PTO
D-Position 2-Heavy Tillage
E-Position 3-Transport or Light Tillage
|
