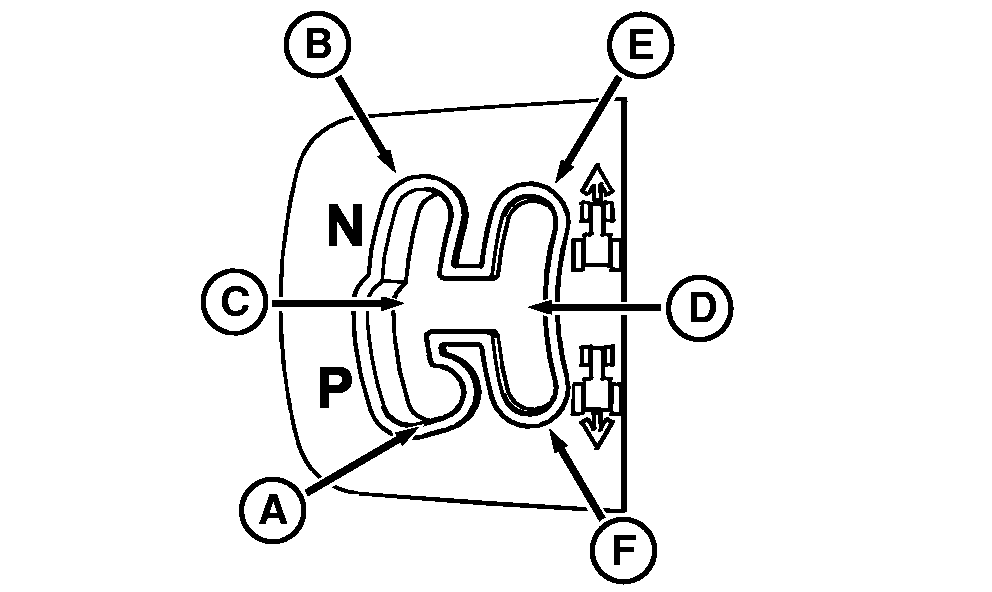

Lever Positions-Left-Hand Reverser

Park (A): Locks transmission to hold tractor stationary, preventing it from rolling; "P" will appear on corner post display.

Neutral (B): Unlocks tractor, allowing it to roll, but does not transmit power to the wheels; "N" will appear on corner post display.

Scroll (C): Scrolls set speeds on corner post display.

Power Zero (D): Hand-held position is used to temporarily hold tractor stationary.

NOTE: Depending on speed and load, Power Zero may not bring tractor to a stop if already in motion.

Forward (E): Transmits power to wheels for forward travel; "F" will appear on corner post display.

Reverse (F): Transmits power to wheels for rearward travel; "R" will appear on corner post display.

A-Park
B-Neutral
C-Scroll
D-Power Zero
E-Forward
F-Reverse

OU1092A,0000361 -19-20MAY05-1/1
