Adjusting Set Speeds (Tractor Stationary)

CAUTION: Avoid unexpected rapid acceleration. Check and adjust set speeds before putting tractor in motion.

Switch ignition to "on" position. (Starting the engine is not necessary.)

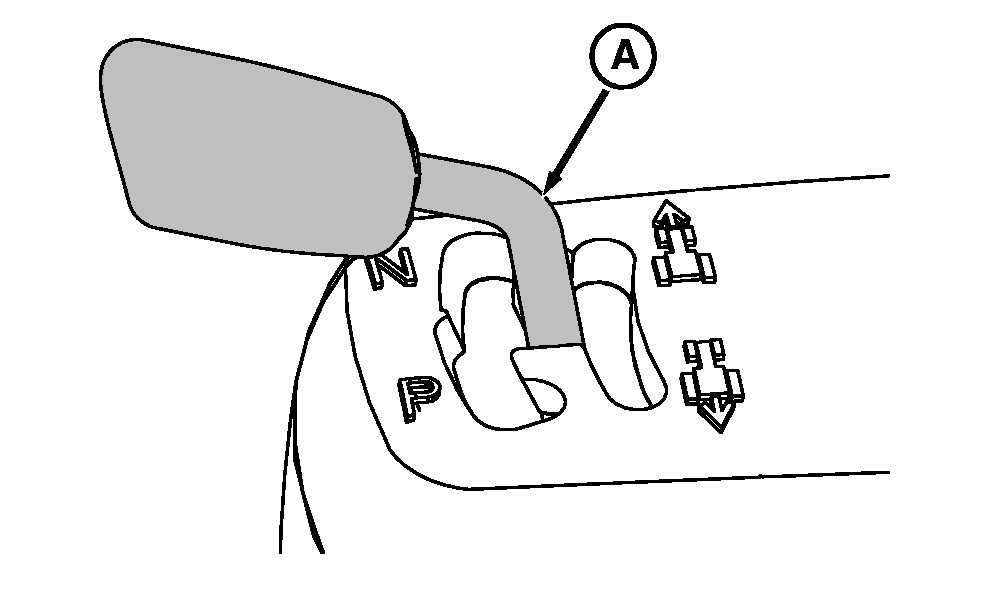

Move Left-Hand reverser lever (A) to Scroll position. The two Forward and two Reverse Set Speeds will scroll on the corner post display (B), pausing at each speed for two seconds. Bar graph (C) on corner post indicates approximate set speeds for each forward and reverse speed band.

Adjust each speed when it displays by rotating the set speed adjuster on the speed control lever forward to increase the set speed value or rearward to decrease it.

A-Left-Hand Reverser
B-Display
C-Bar Graph

OU1092A,0000363 -19-06JUN05-1/2

NOTE: Set speed adjustments may affect the corresponding set speed of the opposite direction. (See ADJUSTING REVERSE-FORWARD SET SPEED RATIO in this section.)

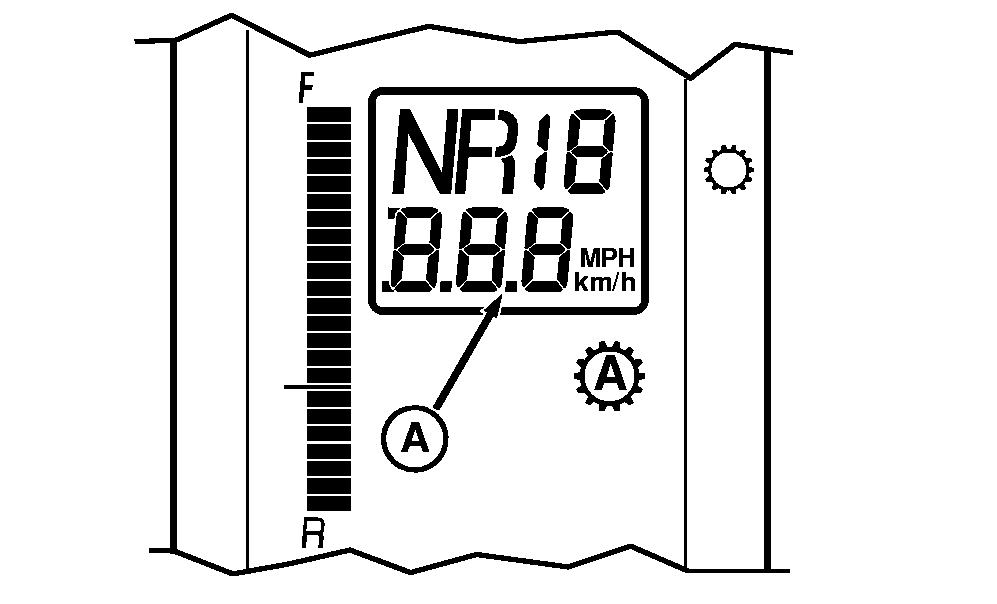

The set speed of a selected speed band and the ground speed of the tractor can be adjusted while the tractor is moving by rotating set speed adjuster (D). Increasing set speed value will increase ground speed. Decreasing set speed value will decrease ground speed. New set speed will indicate on display (A).

The maximum ground speed of a selected speed band is attained at full throttle when speed control lever (B) is pushed all the way forward to end of slot (C) of the respective speed band.

Moving speed adjuster will adjust set speed for selected speed band.

The maximum ground speed of a selected speed band is attained at full throttle when speed control lever (B) is pushed all the way forward to end of slot (C) of the respective speed band.

NOTE: Set speed adjustments may affect the corresponding set speed of the opposite direction. (See ADJUSTING REVERSE-FORWARD SET SPEED RATIO in this section.)

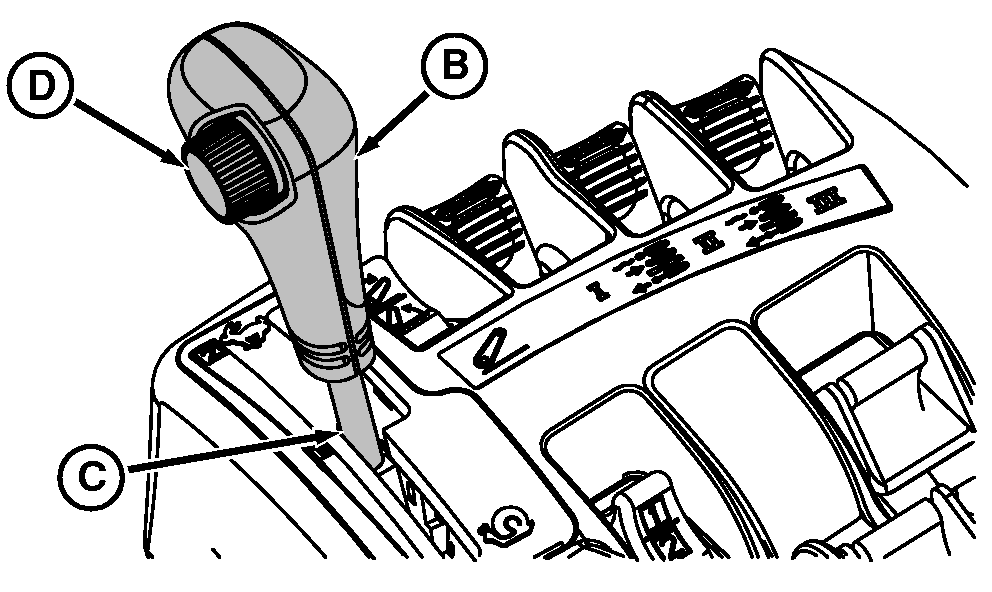

A-Display
B-Speed Control Lever
C-Slot
D-Set Speed Adjuster

OU1092A,0000363 -19-06JUN05-2/2
