Installing and Using Clevis Assembly Cat 3 Drawbar

IMPORTANT: Remove clevis assembly, before using PTO shaft, or whenever PTO shaft might cause interference.

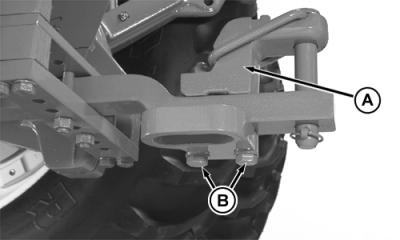

Clevis assembly (A) must be attached ONLY to top of drawbar.

Install clevis assembly and tighten cap screws (B).

Clevis Assembly Retaining Cap Screws - Specification

A-Clevis Assembly
B-Cap Screw

OU1092A,000036A -19-03JUN05-1/2

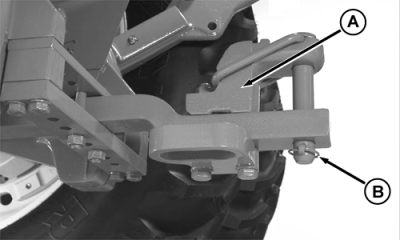

Clevis assembly (A) must be attached ONLY to top of drawbar.

Remove lock pin (B). Lift pin with handle (C) and position in notch of clevis assembly.

Attach implement.

Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.

Reinstall lock pin (B).

A-Clevis Assembly
B-Locking Pin
C-Lift Pin with Handle

OU1092A,000036A -19-03JUN05-2/2
