Bleeding Trailer Hydraulic Brakes (If Equipped)

NOTE: An assistant is needed to perform this procedure.

1. Remove cap and connect a hose to trailer brake outlet (A). Place other end of hose into hydraulic oil filler tube (C).

2. Loosen bleed screw (B).

3. Connect a hose over bleed screw nipple. Place other end of hose into hydraulic oil filler tube.

4. Start engine.

5. At slow idle, depress brake pedals for approximately 2 minutes.

6. Tighten bleed screw (B) with brake pedals depressed.

7. Shut off engine and remove key.

8. Remove hoses and install hydraulic oil filler tube cap.

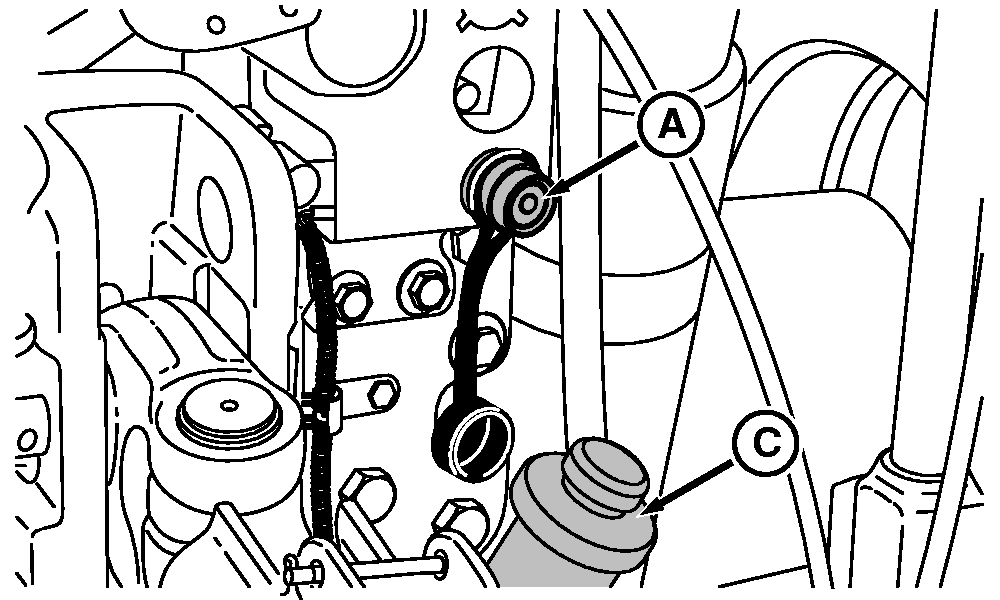

A-Trailer Brake Outlet

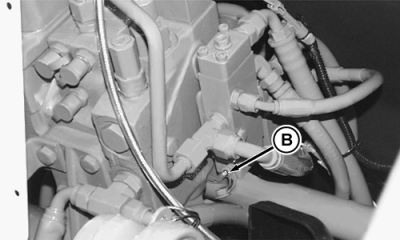

B-Bleed Screw
C-Hydraulic Oil Filler Tube

OU1092A,0000371 -19-26MAY05-1/1
