Checking Neutral Start System-AutoPowr Transmission

SERVICE INTERVAL - 250 HOURS



1. Make sure everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move left-hand reverser (A) to any position except NEUTRAL or PARK position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere dealer immediately .

Engine should start in NEUTRAL or PARK positions only.

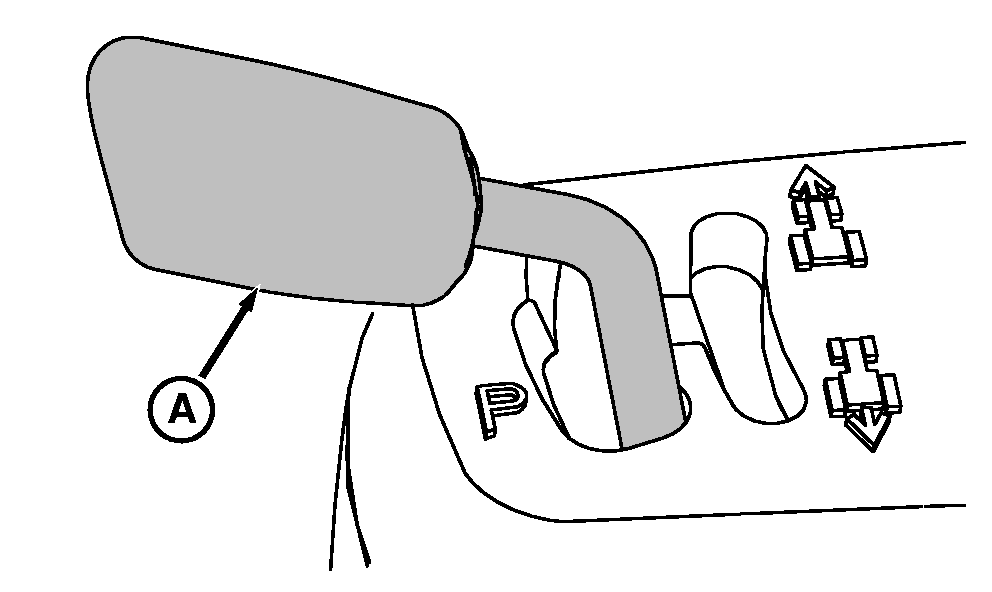

RXA0068277


A-Left-Hand Reverser

OU1092A,0000378 -19-03JUN05-1/1
