Vehicle Speed Calibration (Dual Beam Radar Sensor)

On tractors equipped with factory or dealer installed dual beam radar, it is not necessary to calibrate vehicle speed. Reset % wheel slip value if:

· Wheel speed and radar speed are not equal when slip is not present

· Wheel slip is displayed where slip should not be present

· Change tire size

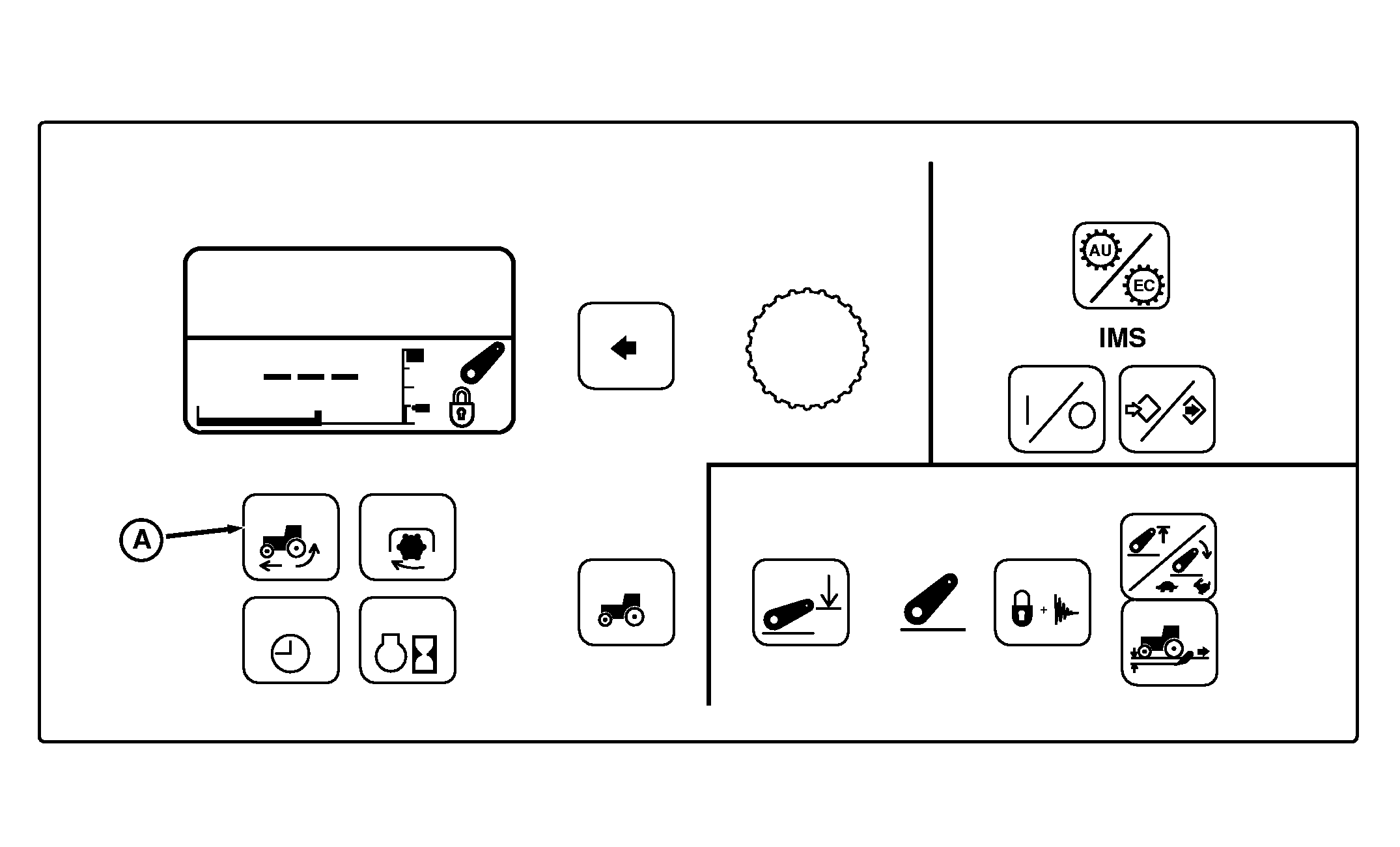

Reset % slip value by driving tractor on a hard level surface at a constant speed of 8 kph (5 mph). Press and hold % Slip Switch (A) for a minimum of 3 seconds to zero out slip. It is recommended to have an implement connected to the tractor but not engaged in the ground (no load).

OU1092A,00003F8 -19-15AUG05-1/1
