Using Float Operation |
|

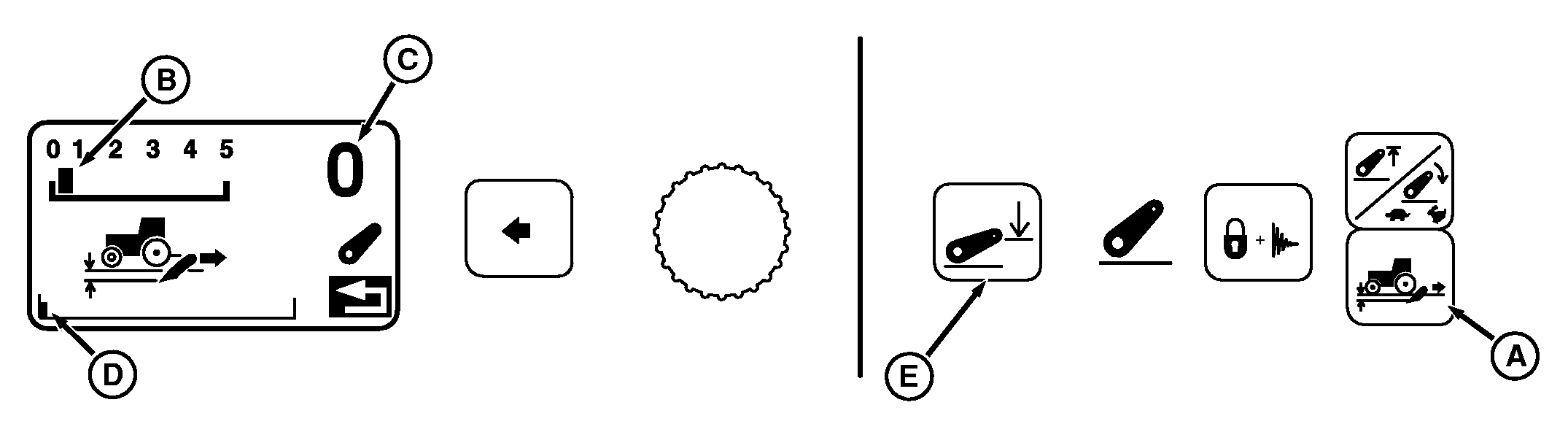

A-Load/Depth Switch
B-Position Control
C-Commanded Depth
D-Full Down Depth Setting
|

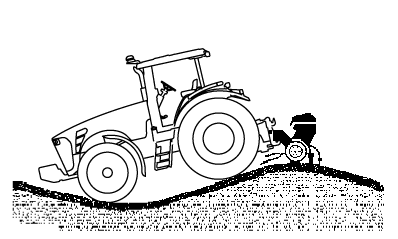

Implements equipped with depth-gauging wheels may require float operation to follow ground contour. Set load/depth to "position" control (B). Hold hitch lever forward until commanded depth setting shows zero (C), full down. Press Set Switch (E) to save full down as stored depth setting. NOTE: Lift links can be adjusted for lateral float. (See CHANGING LATERAL FLOAT in this section.) |
|
OU1092A,0000408 -19-28JUL05-1/1 |
