Using Electrohydraulic Implement Depth Control (EHDC) (If Equipped)

CAUTION: Avoid personal injury or death. Do not attempt to install depth control sensors on implements not intended for this system. See implement operator's manual.

Moving implement control unit, sensor, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Electro-Hydraulic Depth Control is used to electronically control raising, lowering, and setting of implement depth, without leaving the cab. Electro-Hydraulic Depth Control requires 9-pin implement feedback connector (E) installed on tractor and position sensor on implement in order to function and will only function using SCV 1.

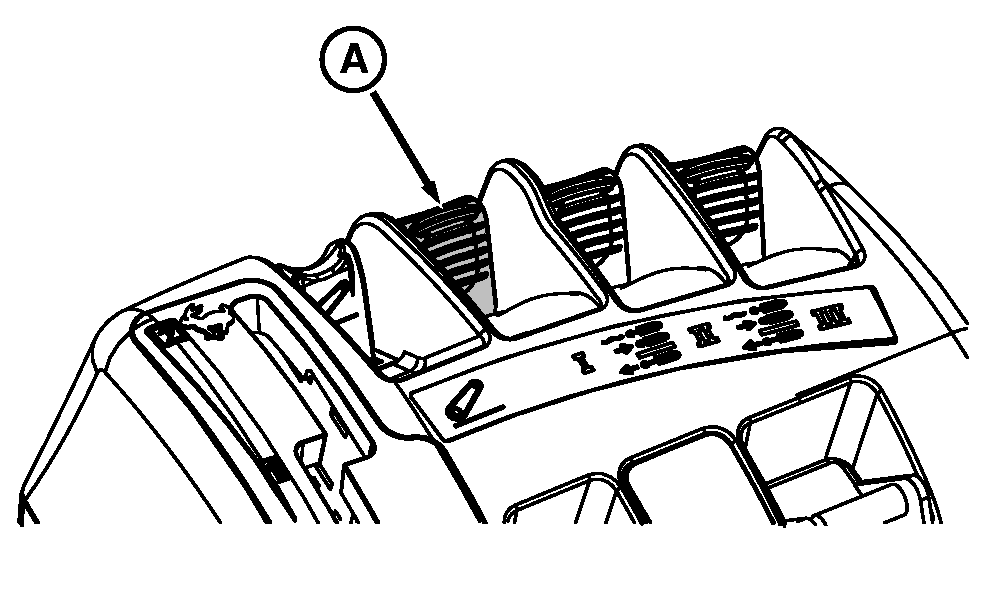

Control lever (A) is used to raise and lower implement.

Touch switches (B and C) set height and depth limits of implement.

Flow control (D) adjusts flow rate for each SCV to determine speed at which implement will raise and lower.

SCV is restored to normal operation whenever tractor is started with wiring harness disconnected.

A-SCV I Control Lever
B-Raise Position Set Switch
C-Lower Position Set Switch
D-Flow Rate Adjustment Knob

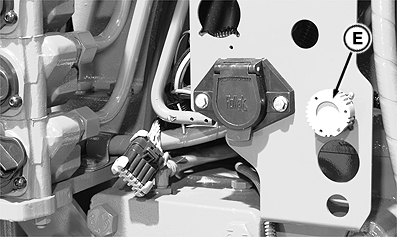

E-9-Pin Implement Feedback Connector

OU1092A,000040D -19-25JUL05-1/1
