Checking Electrohydraulic Implement Depth Control (EHDC) (If Equipped)

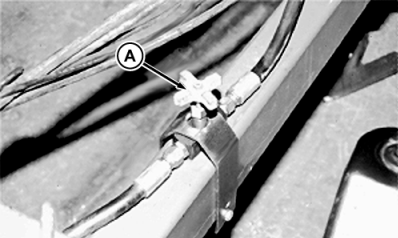

1. Open implement lock-up valve (A).


A-Lock-Up Valve

RW26614

OU1092A,000040E -19-25JUL05-1/2

IMPORTANT: If setup panel does not show "P" (B) at start-up, electrohydraulic depth control is not correctly connected. Keyswitch must be in the off position when feedback harness is connected.

2. Start engine and raise and lower implement with SCV I control lever (A). Pulling lever rearward will raise implement and pushing lever forward will lower implement.

3. Push SCV control lever (A) forward to desired implement operating depth.

4. Push switch (D) to set operating depth. Implement will lower to same working depth each time the lever is pushed forward to the detent "click" position and released.

5. Pull SCV control lever back to raise implement to desired height. Push switch (C) to set upper limit. Implement will raise to same height each time lever is pulled back to detent "click" position and released.

NOTE: Setpoint indicator (F) shows upper and lower settings.

6. Adjust flow rate (E) to determine speed at which implement will raise and lower.

NOTE: Stored set points can be over-ridden holding SCV I lever in extend or retract position. Settings are restored by resetting SCV I to the detent "click" position.

RXA0068286
RXA0082730

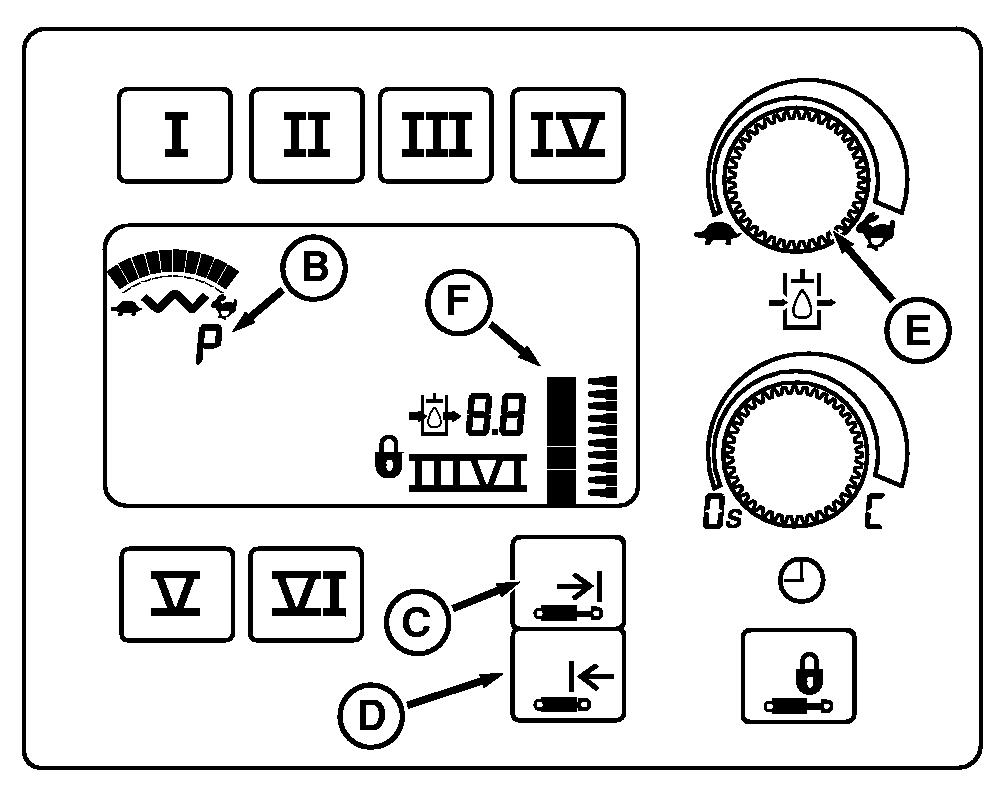

A-SCV I Control Lever
B-"P" Display
C-Raise Position Set Switch
D-Lower Position Set Switch
E-Flow Rate Adjustment Knob
F-Setpoint Indicator

OU1092A,000040E -19-25JUL05-2/2
