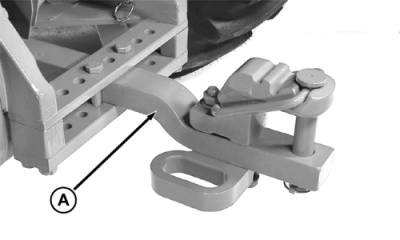

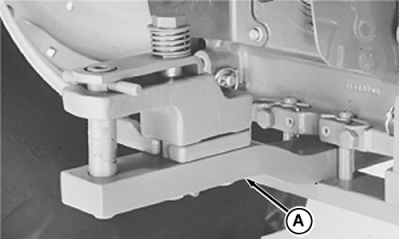

Drawbar Load Limits Based on Drawbar Position, Length and PTO TypeIMPORTANT: Certain heavy implements can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar for a given drawbar length/position, as indicated in table below. NOTE: Category 2 drawbar uses a 33 mm (1.3 in.) attaching pin. Category 3 drawbar uses a 38 mm (1.5 in.) pin. |
|
| Drawbar Load Limits | ||||
|---|---|---|---|---|
| Drawbar Length/Position | Dimension | Maximum Vertical Load - Category 2 Drawbar | Maximum Vertical Load - Category 3 Drawbar | PTO Speed |
| 1- Short/Rear Hole | 254 mm (10 in.) | 2268 kg (5000 lb) | 2766 kg (6100 lb) | Not for PTO |
| 2-Medium/Middle Hole | 356 mm (14 in.) | 1678 kg (3700 lb) | 2131 kg (4700 lb) | 540 rpm |
| 3-Long/Front Hole | 406 mm (16 in.) | 1430 kg (3150 lb) | 1837 kg (4050 lb) | 1000 rpm |
OU1092A,0000490 -19-08SEP05-1/1 |
