Using Hitch Manual Lowering

causym CAUTION: Avoid possible injury. Perform manual lowering from cab.

Hitch can be manually lowered, if hydraulic pressure and/or electrical power is not available.

1. Remove cap (A).

2. From cab, use a small punch to depress manual lowering plunger (B). Rate of drop is controlled by amount of force applied to plunger.

3. Install cap.

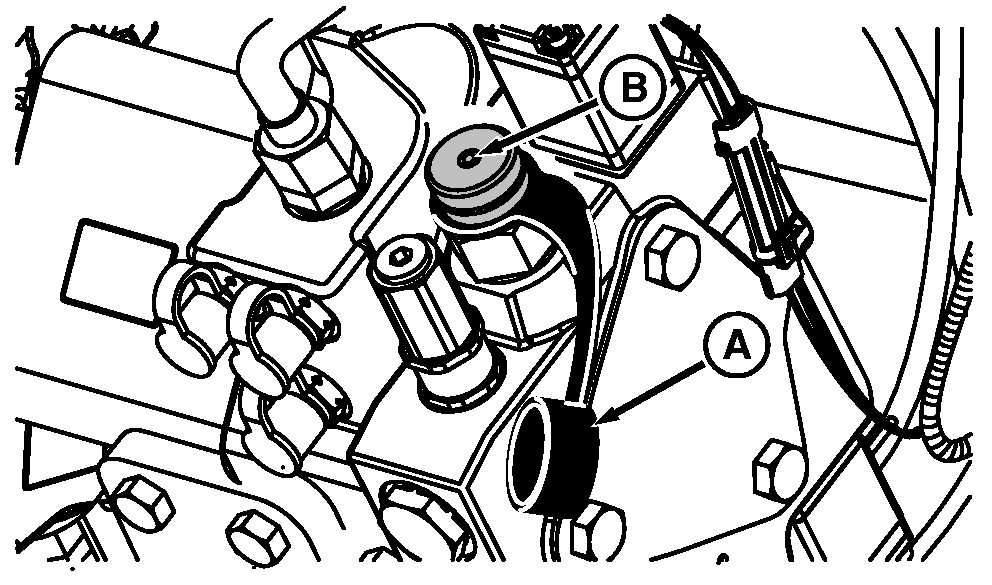

RXA0068300

Top of Hitch Valve


A-Cap
B-Lowering Plunger
