Adjust lift links to level implement side-to-side.

1. Remove locking ring (B) and lift up adjusting handle wrench (A).

2. Rotate center portion of lift link to desired position.

3. Measure between centers of pins (C). Normal adjusting range with float locked out, should be within specifications.

Specification

Adjustment -Length

890-1050 mm

(35-41 in.)

4. Position adjusting handle wrench against lift link body and fasten with locking ring.

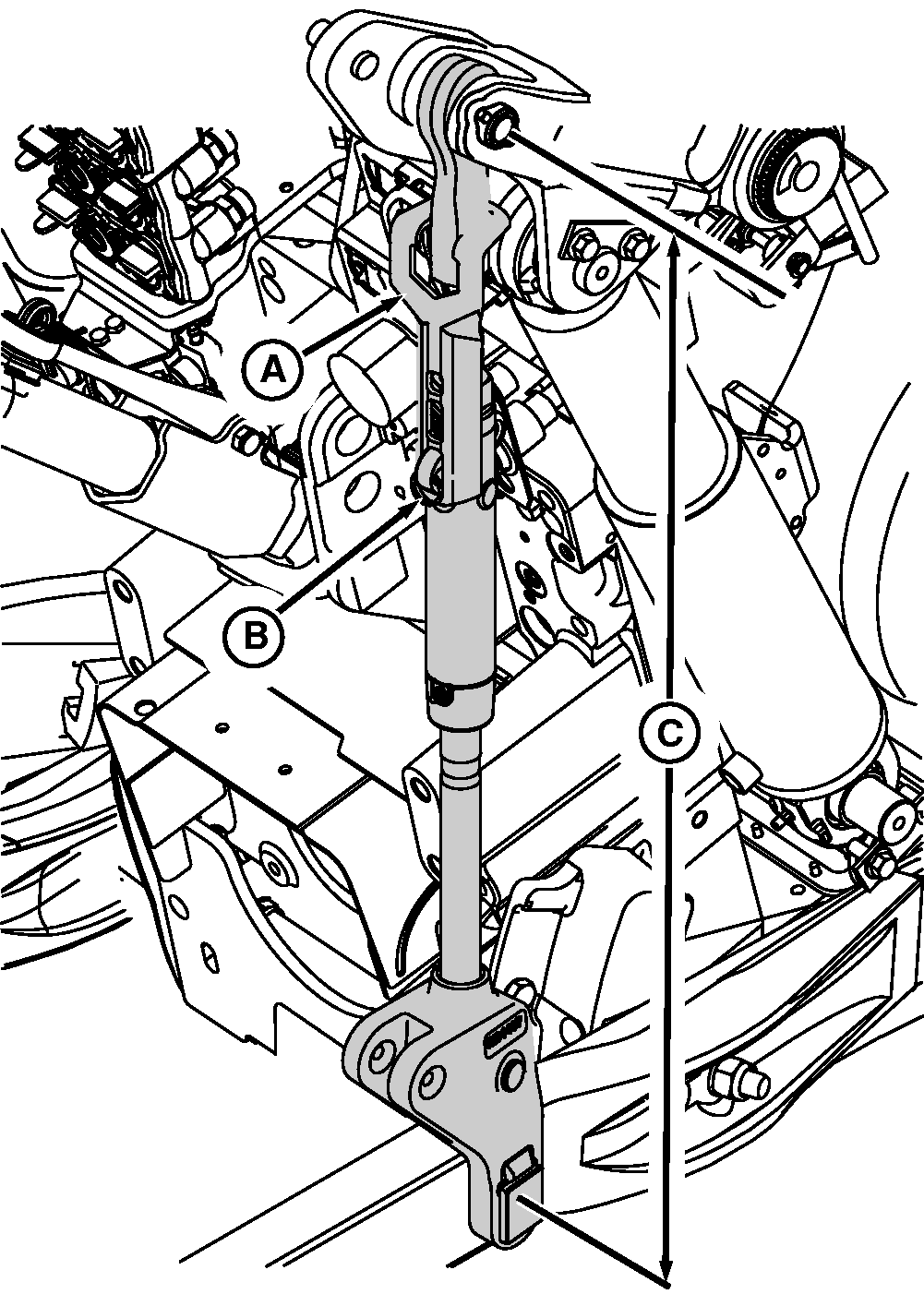

A-Wrench
B-Locking Ring
C-Center of Pins
