Changing Lateral Float

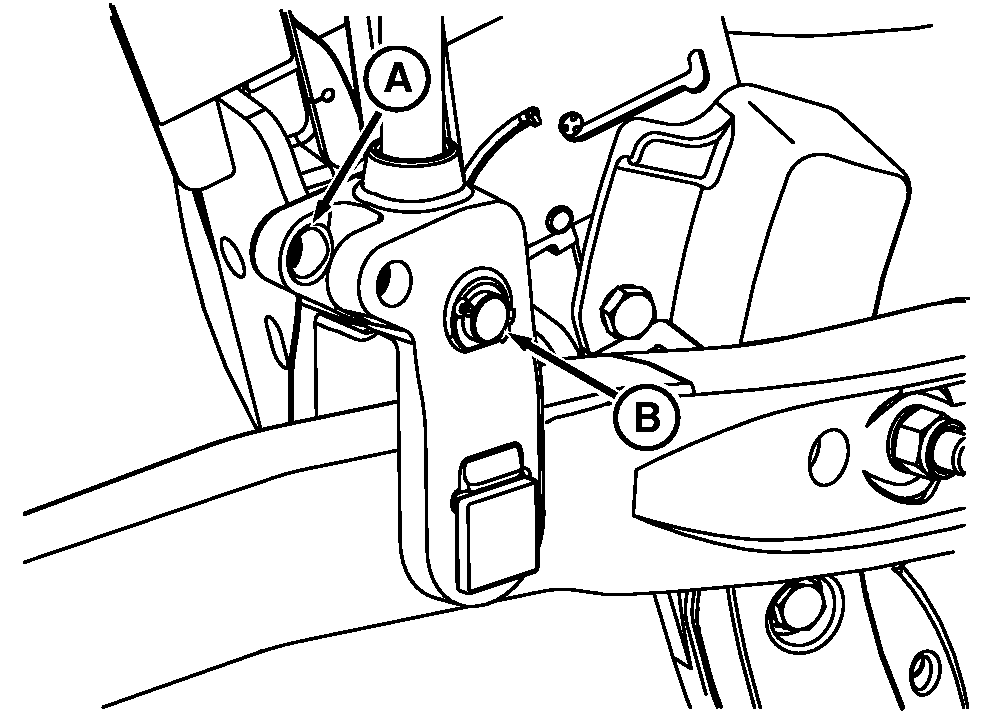

Put lateral float pins in lower holes (B) to hold implement rigidly.

Put lateral float pins in upper holes (A) to allow either draft link to raise slightly as implement follows ground surface.

A-Upper Holes
B-Lower Holes

OUMX005,00015D4 -19-22MAR05-1/1
