Attaching PTO-Driven Implement

causym CAUTION: Entanglement in rotating driveline can cause serious injury or death. STOP THE ENGINE and be sure PTO driveline is stopped before making adjustments, connections, or before cleaning PTO-driven equipment.

Keep PTO shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing.

Lock drawbar in center, no-sway position shown and remove clevis assembly.

PTO Shaft Distance from PTO Shaft End to Hitch Pin Hole (A)
540 rpm - 6 Splinesa 350 mm (14.0 in.)
1000 rpm - 21 Splinesa 400 mm (16.0 in.)
1000 rpm - 20 Splinesb 508 mm (20 in.)
a35 mm (1-3/8 in.) Shaft Diameter
b45 mm (1-3/4 in.) Shaft Diameter



Attach implement to drawbar before connecting PTO driveline. If implement will be connected to quick coupler, be sure drawbar will not interfere.

Connect driveline to PTO shaft. Turn shaft slightly by hand, to line up splines. Be sure yoke is in correct position and firmly locked.

Move PTO shield into position. (See USING PTO SHIELD in this section.)

TS1644
RXA0058071

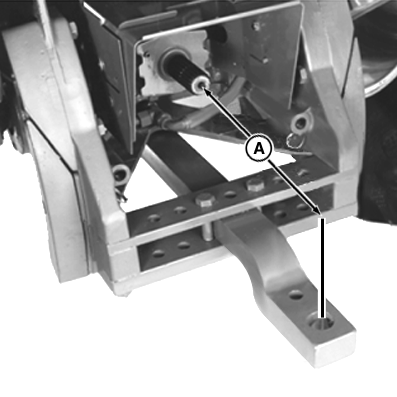

A-PTO Shaft-to-Pin Hole Distance
