SCV Lever-Neutral Position

Neutral holds remote cylinder in position.

When the automatic detent mode is selected, the SCV lever will return to neutral at the end of cylinder stroke.

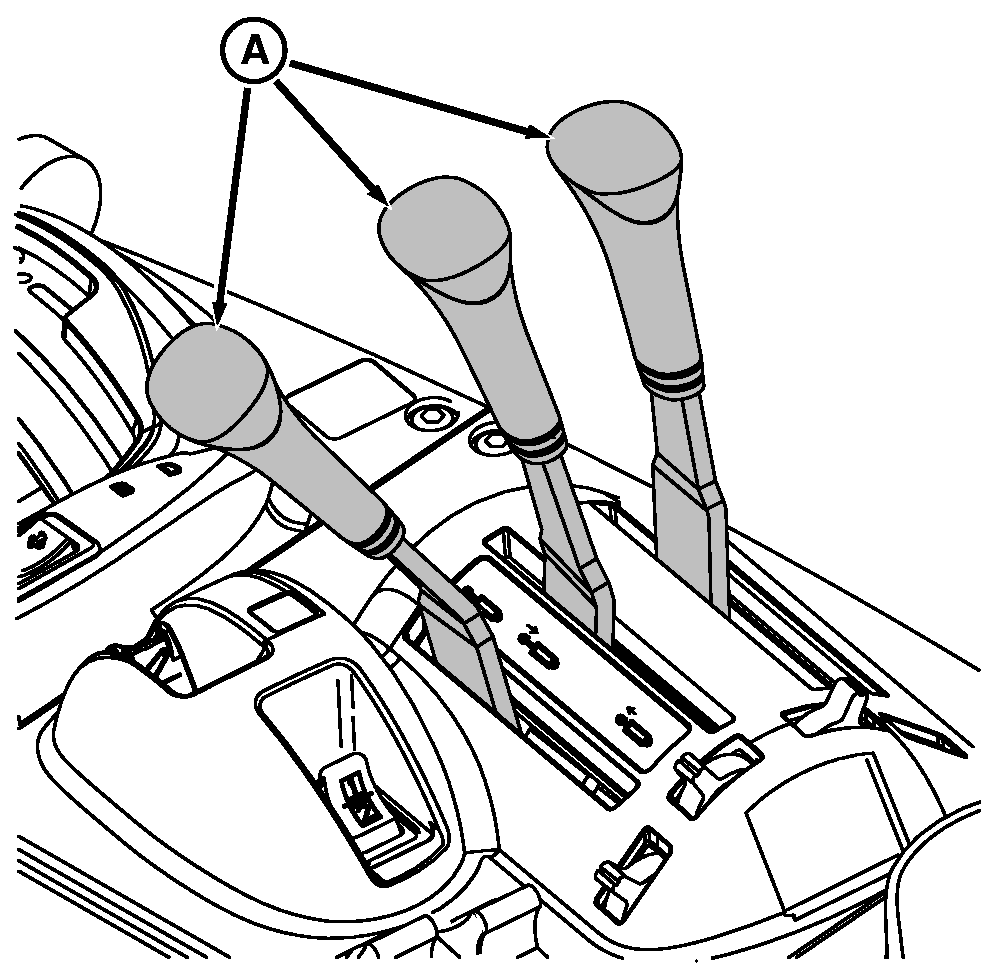

Levers (A) in extend or retract position automatically return to neutral when the engine is stopped. Float position will remain detented when the engine is stopped.

A-Levers
