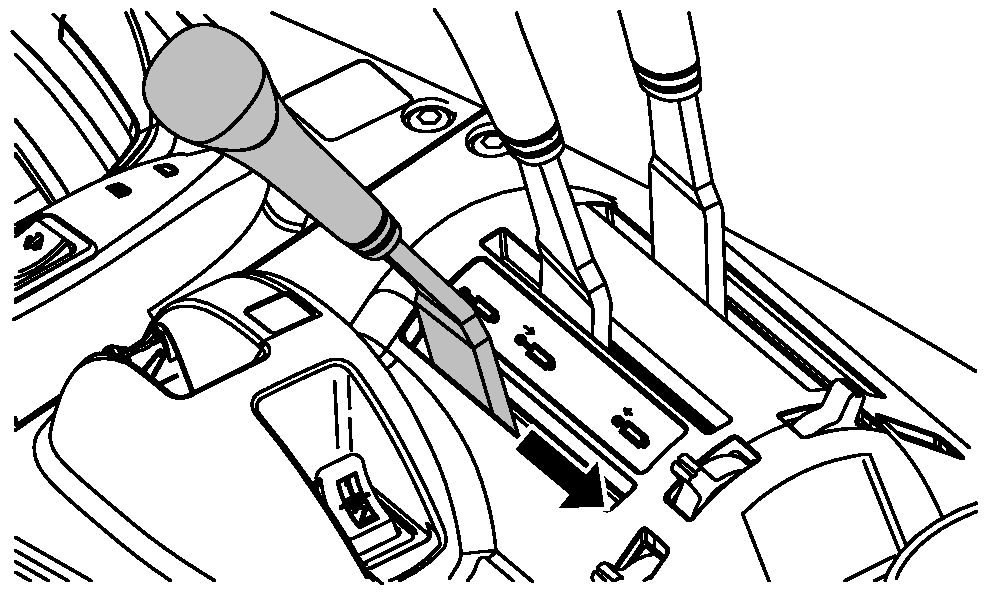

SCV Lever-Extend Position

Pull lever slightly to rear of neutral. This slowly extends cylinder. Lever returns to neutral when released.

Pull the lever all the way rearward to extend the remote cylinder at maximum rate. Detent operation mode depends on the SCV detent selected. (See SCV LEVER DETENT OPERATION, in this section).
