SCV Lever-Retract Position

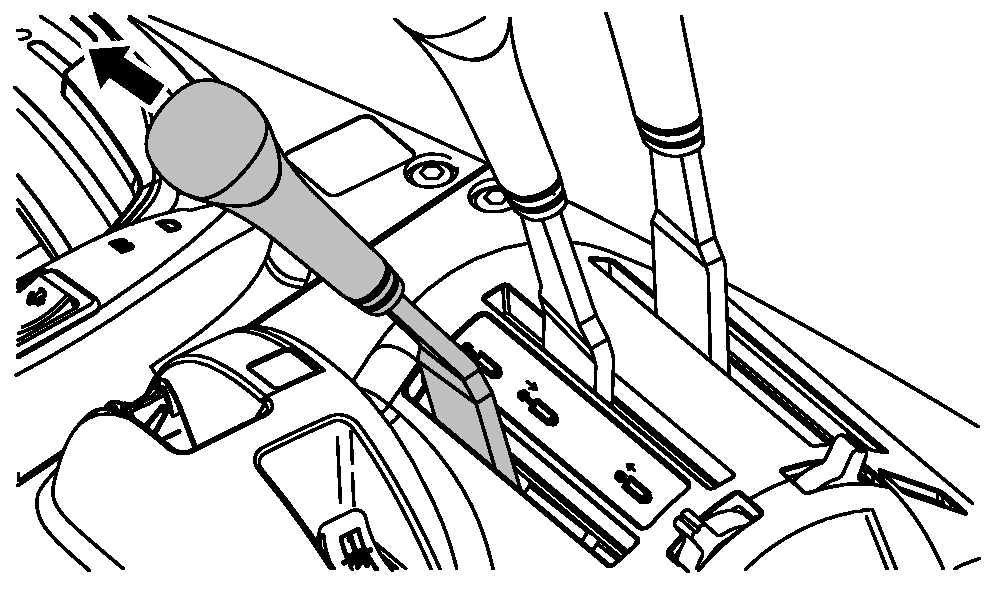

Push lever slightly forward of neutral. This slowly retracts cylinder. Lever returns to neutral when released.

Push the lever forward to the first detent notch to retract the remote cylinder at maximum rate. Detent operation mode depends on the SCV detent selected. (See SCV LEVER DETENT OPERATION, in this section).
