SCV Lever-Float Position

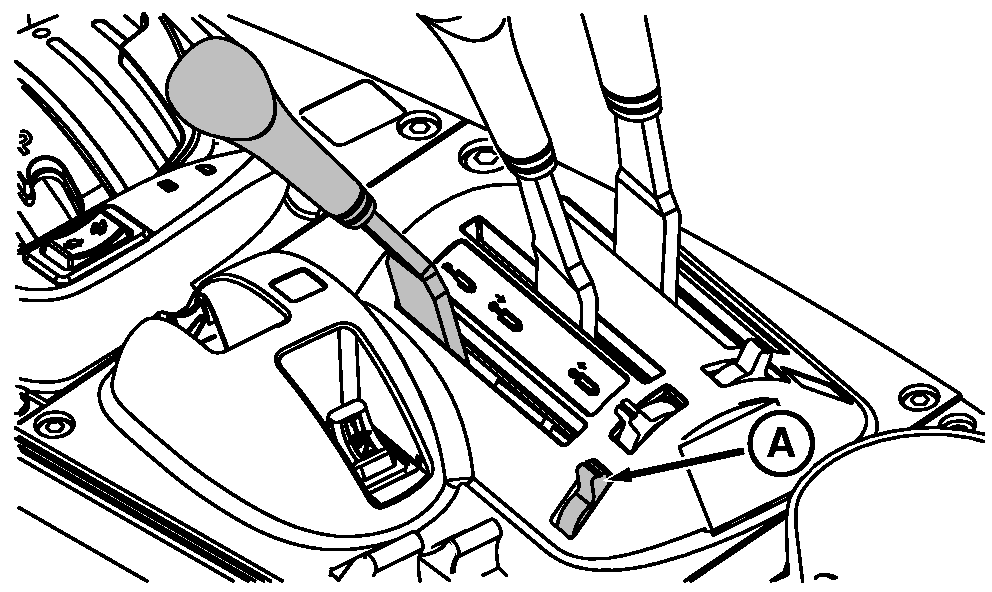

Move the SCV lever lockout (A) to the right position to allow full lever travel.

Push SCV lever all the way forward to float position. Cylinder is free to extend or retract, letting implement follow ground.

Cycle cylinder fully in both directions after being used in the float position to insure cylinder is filled with oil.

A-Lockout
