Checking Neutral Start System-PowrQuad-Plus and AutoQuad-Plus Transmission

SERVICE INTERVAL - 250 HOURS



1. Make sure everyone is clear of tractor.

2. Fully depress clutch and brake pedals.

3. Move transmission control lever to NEUTRAL position (A).

4. Move left-hand reverser (B) to NEUTRAL position.

5. Start engine. Wait 6-7 seconds.

6. Move left-hand reverser (B) from NEUTRAL to FORWARD or REVERSE.

  • If control lever (B) remains in direction selected, without being held, neutral start system is working correctly.
  • If control lever (B) returns INSTANTLY from forward or reverse to NEUTRAL, without being moved manually, neutral start system should be repaired. See your John Deere dealer immediately .

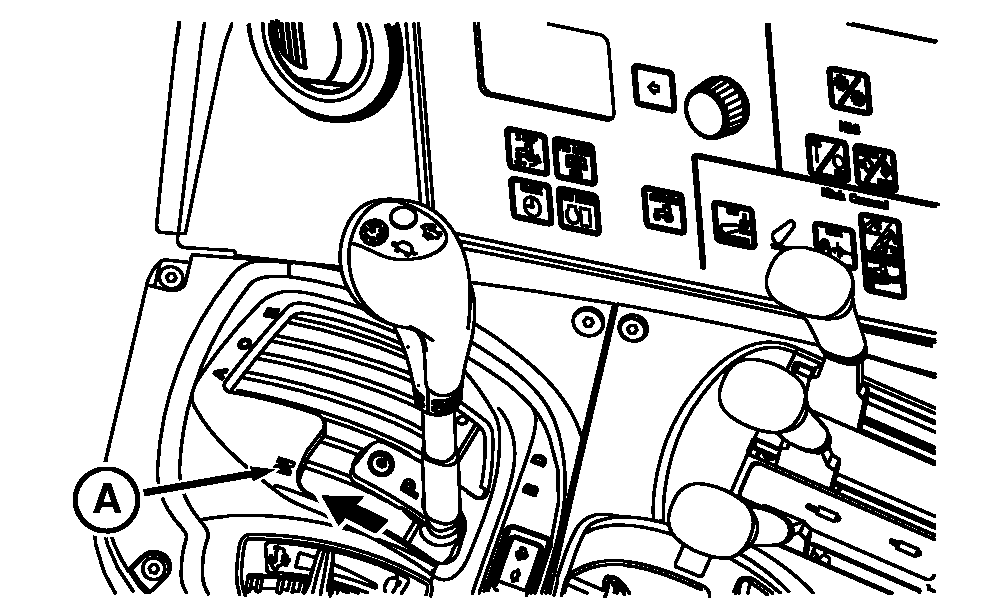

RXA0068367
RXA0068268


A-NEUTRAL Position
B-Left-Hand Reverser

OUMX005,000160F -19-22MAR05-1/1
