Servicing Engine Air Intake and Pre-Cleaner

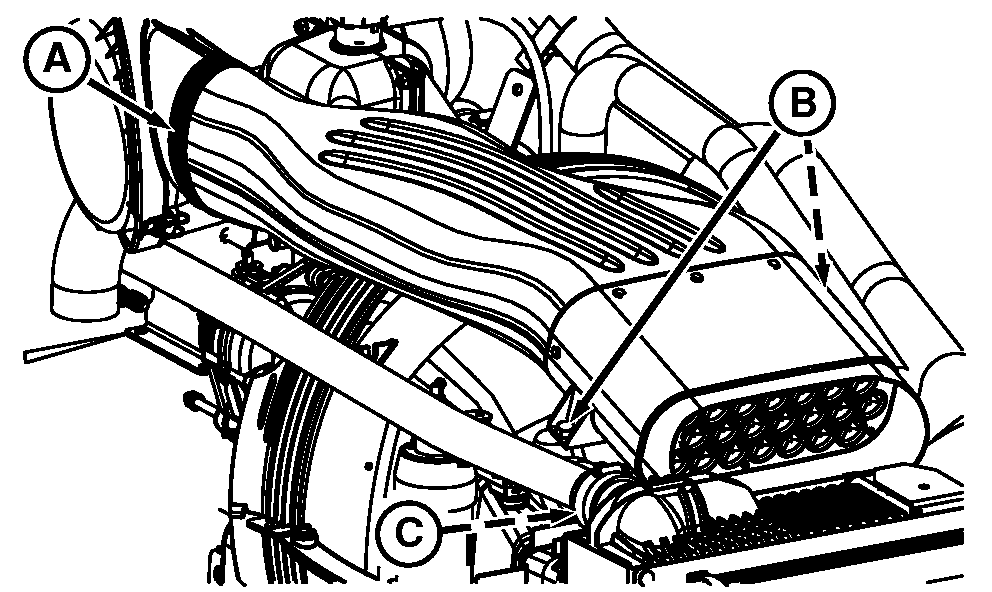

2. Slide band (A) toward front of tractor.

3. Loosen hose clamp at ejector hose (C).

4. Remove two cap screws (B).

5. Remove pre-cleaner from tractor by rotating and sliding out of intake canister inlet.

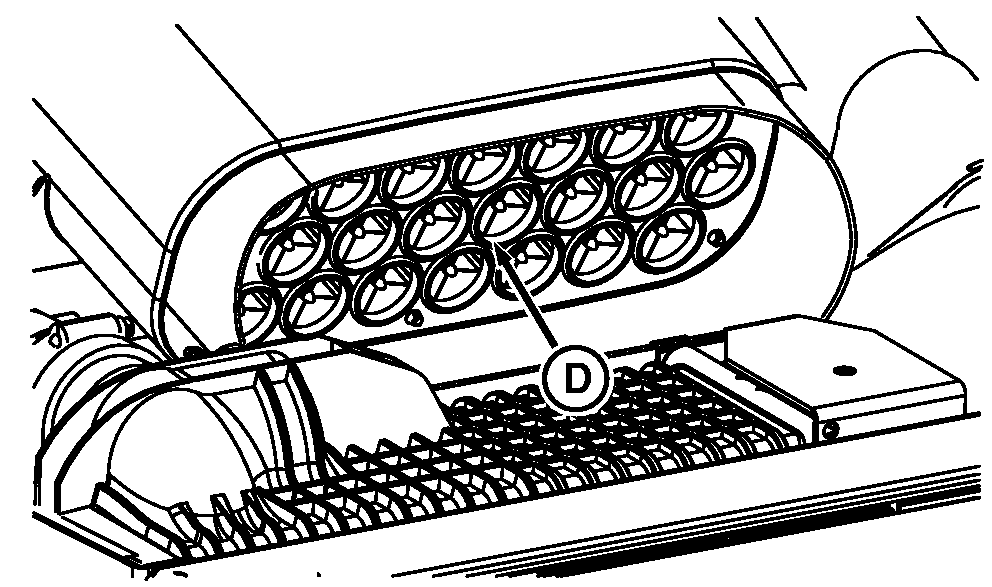

6. Inspect ejector hose and pre-cleaner for dirt and trash. Clean aspirator tubes (D) with compressed air or wash tubes in warm water using a mild detergent. Rinse aspirator tubes in clean water. Dry before installing.

7. Install pre-cleaner in reverse order of disassembly.

8. Tighten all air intake system joints.

9. Tighten hose clamps at turbocharger.

A-Hose Band
B-Cap Screws
C-Ejector Hose
D-Aspirator Tubes

OUMX005,0001613 -19-13JUN05-1/1
