Replacing Primary and Secondary Engine Air Filters

SERVICE INTERVAL - ANNUALLY *
* Interval can vary according to operating conditions



Replace the primary engine air filter if the filter indicator light remains ON.

1. Raise hood.

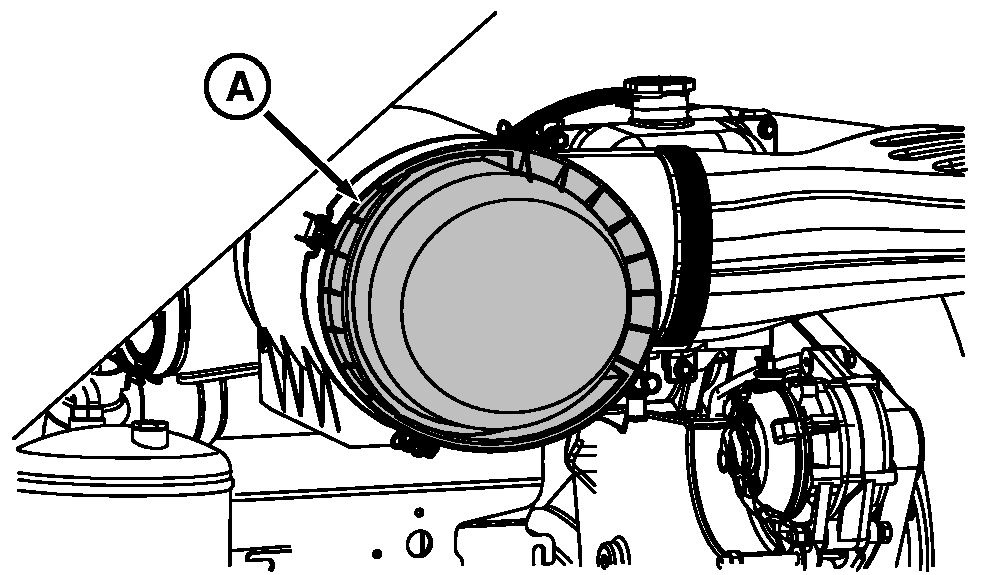

2. Unfasten four clips and remove filter cover (A).


A-Cover

RXA0068390

OUMX005,0001616 -19-22MAR05-1/2

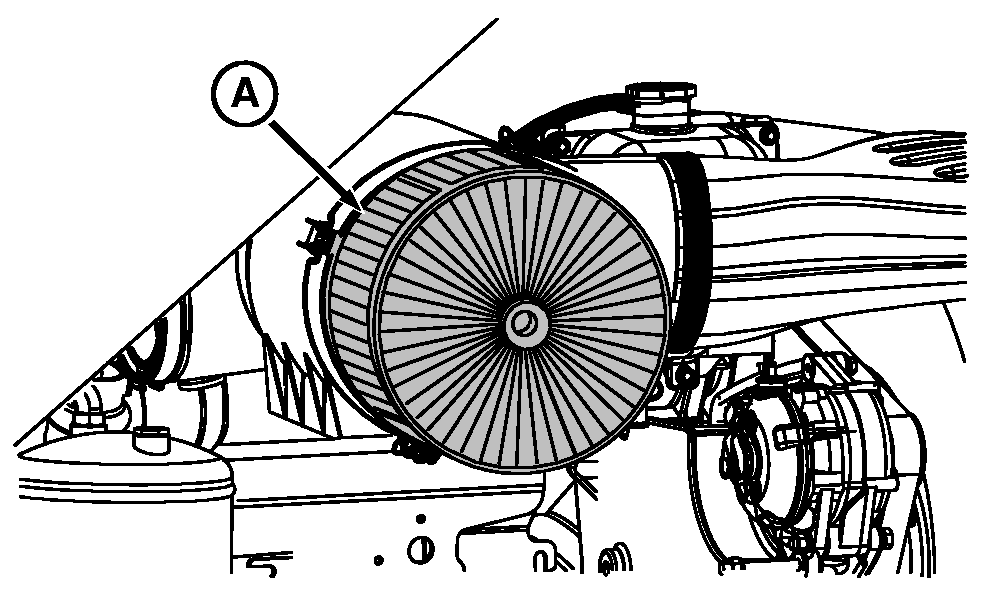

3. Turn and pull to remove primary filter (A).

4. Clean dirt from inside of canister and cover.

IMPORTANT: Do not attempt to clean filters.

Replace secondary filter every second primary filter change.

Install new secondary filter immediately to prevent dust from entering air intake system.

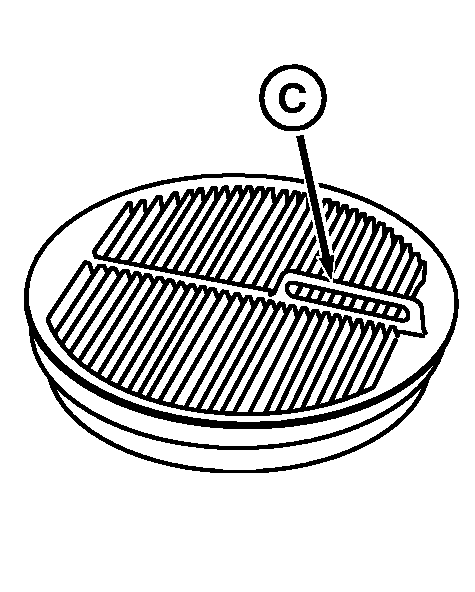

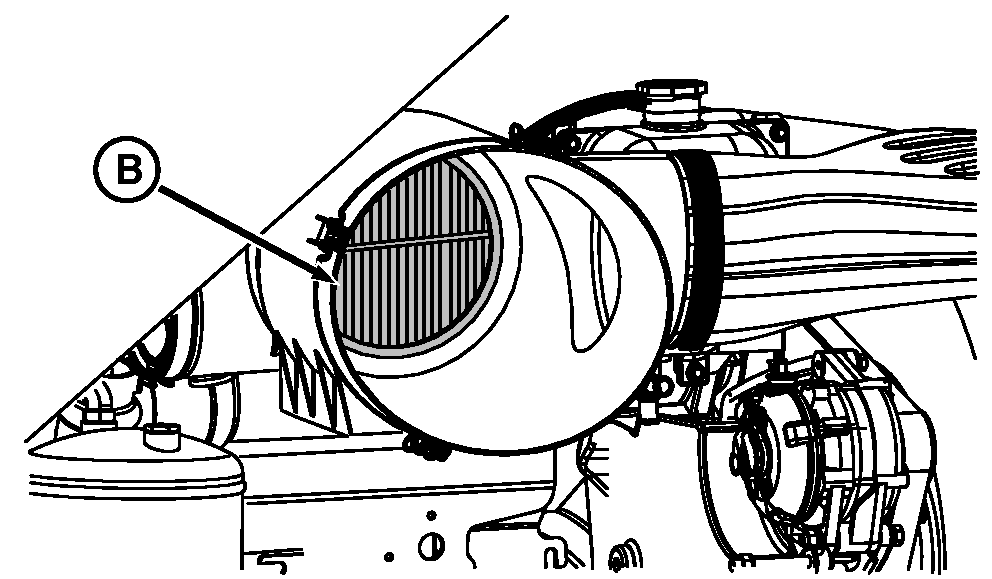

5. Pull on handle (C) to remove secondary filter (B).

6. Replace filters and install cover.


A-Primary Filter
B-Secondary Filter
C-Handle

RXA0068391
RXA0068392
RXA0068393

Secondary Filter

OUMX005,0001616 -19-22MAR05-2/2
