Checking Engine Oil Level-8.1 L Engine

SERVICE INTERVAL - DAILY OR 10 HOURS



NOTE: Tighten dipstick to check oil. Cross-hatch area is considered FULL.

1. Remove dipstick and check oil level with tractor on level ground. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

2. If needed, add oil recommended in Fuel, Lubricants and Coolant section.

IMPORTANT: Do not operate engine with oil level below the "ADD" mark on dipstick.

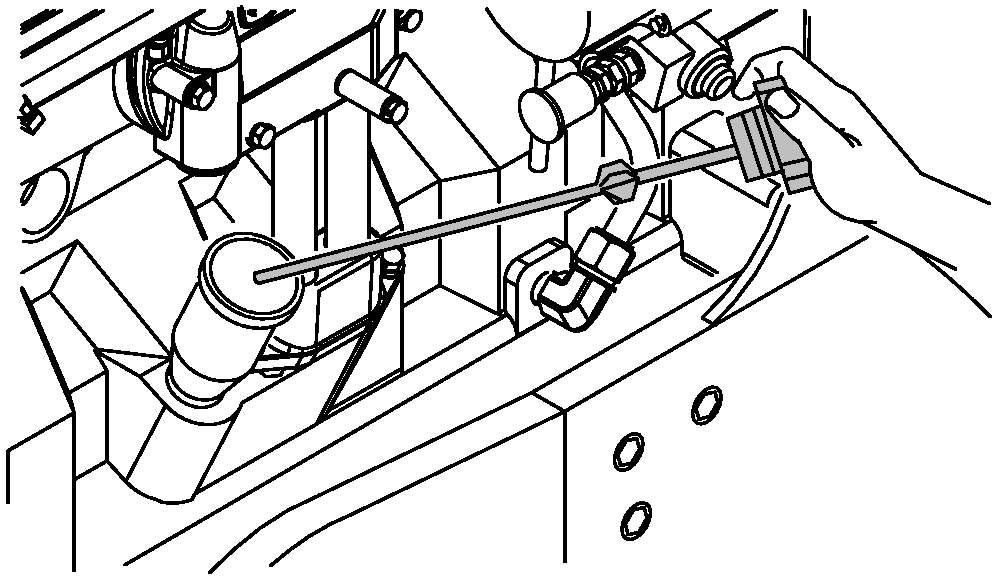

RXA0068441

Left-Hand Side

OUMX005,000161F -19-22MAR05-1/1
