Changing Transmission-Hydraulic Oil and Cleaning Suction Screen

SERVICE INTERVAL - 1500 HOURS



1. Drive tractor to warm transmission-hydraulic oil.

2. Park tractor on level surface.

3. Let engine run at idle for one-two minutes, then stop the engine.

NOTE: It may be necessary to remove drawbar to access drain plugs.

4. Remove drain plugs (A).

5. Remove oil line (B) located on left front side of differential case.

6. Remove suction screen and wash carefully in solvent. Blow dry with compressed air.

7. Install screen and oil line making sure gasket and O-ring are correctly positioned.

8. Reinstall plugs after oil has drained.

9. Refill with transmission-hydraulic oil specified in Fuel, Lubricants and Coolant section.

Specification

Transmission-Hydraulic System -Capacity 108 L (28.5 gal)

10. Start and operate engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

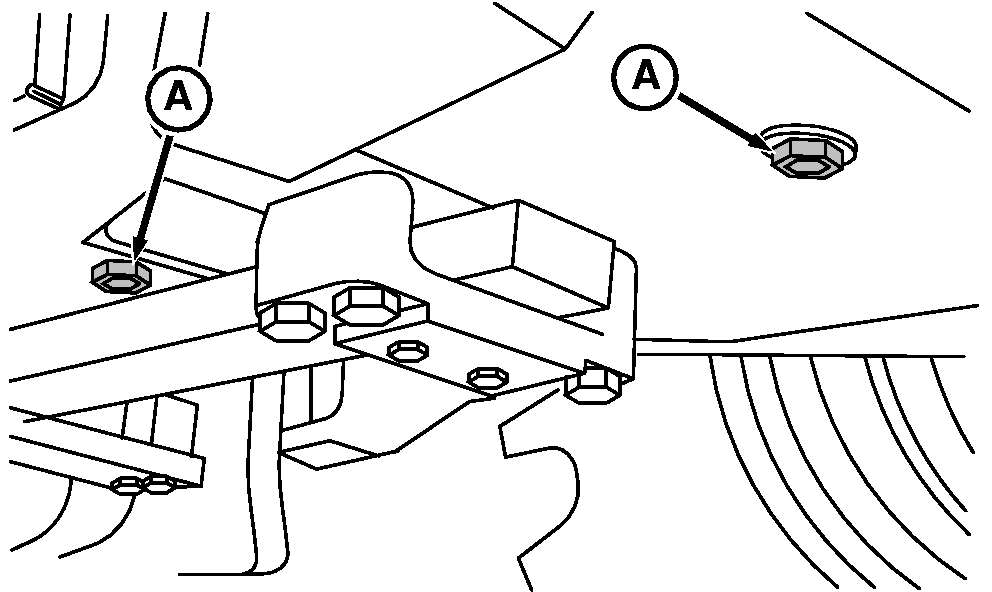

RXA0068446

Differential Case Drain Plugs

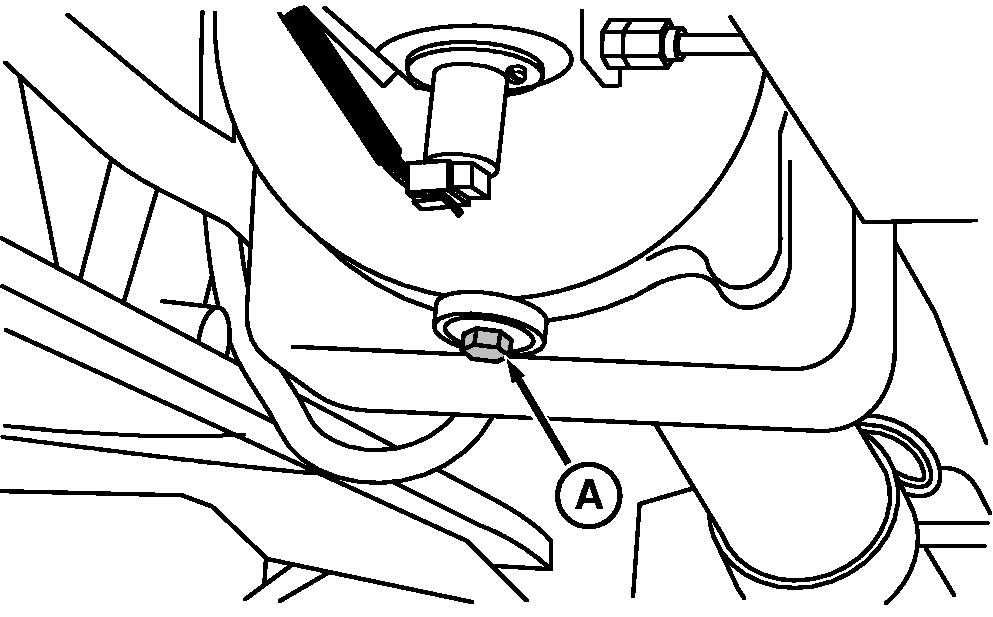

RXA0068447

MFWD Clutch Housing Drain Plug

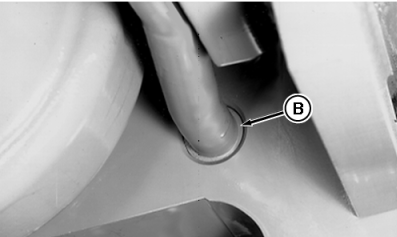

RW26989

Suction Screen Location


A-Drain Plugs
B-Oil Line
