Replacing Transmission Filter

SERVICE INTERVAL *
INITIAL INTERVAL - 100 HOURS
SCHEDULED INTERVAL - 750 HOURS
* Interval can vary according to operating conditions



1. Remove filter (A) using a 1/2 in. drive extension and ratchet wrench on bottom of filter.

2. Lubricate new filter seal with hydraulic oil.

3. Install filter until gasket contacts surface. Hand tighten additional 1/2 turn.

4. Check oil level and add oil as required.

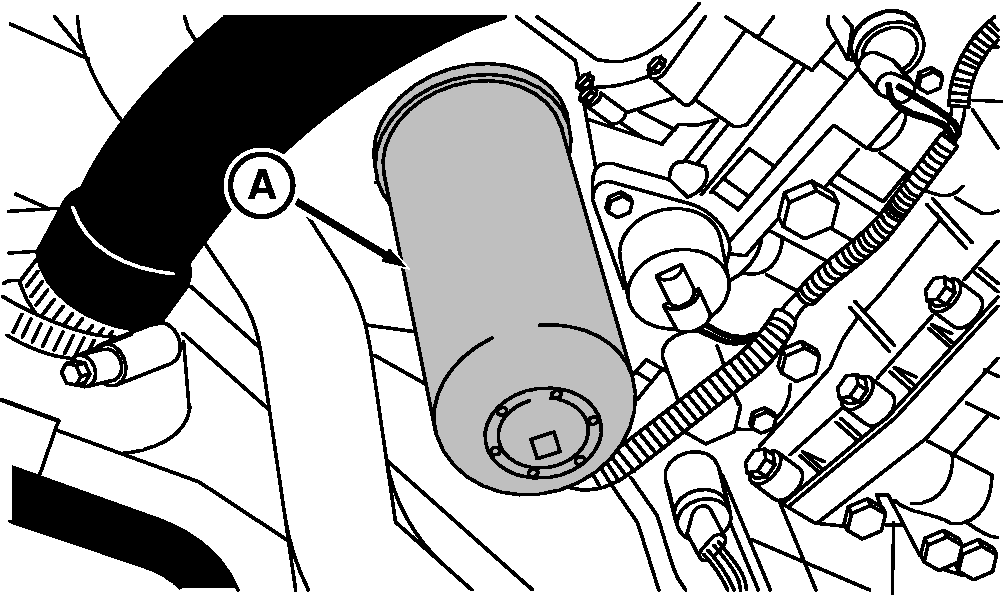

RXA0068448

Right-Hand Side


A-Filter

OUMX005,000162D -19-22MAR05-1/1
