Lubricating MFWD Axle

SERVICE INTERVAL - 250 HOURS *
* Daily or Every 10 Hours if operated in extremely wet conditions, or for Heavy Duty service using front loaders, front hitch or front tanks.



Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

Apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Apply grease to fittings (B-D).


A-Kingpin Fittings
B-Tie Rod End Fittings
C-Axle Pivot Fitting-Front
D-Axle Pivot Fitting-Rear

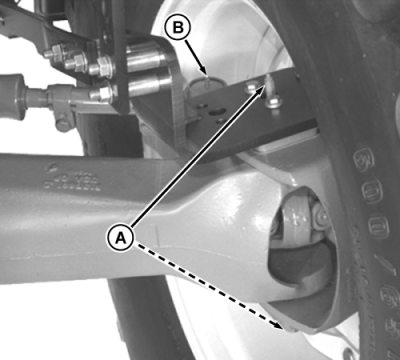

RW56542A

Left-Hand Side Shown

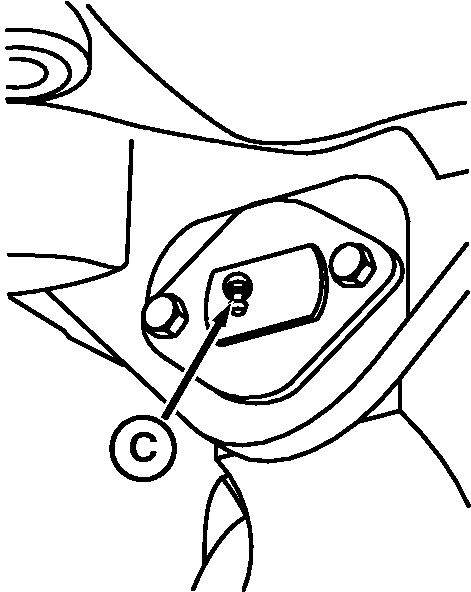

RXA0068452

Front Pivot Fitting

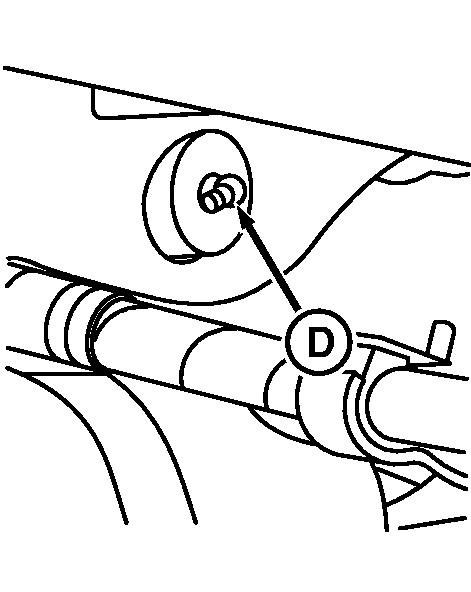

RXA0068453

Rear Pivot Fitting

OUMX005,0001630 -19-22MAR05-1/1
