Lubricating Triple Link Suspension (TLS II) (If Equipped)

SERVICE INTERVAL - 250 HOURS *
* Daily or Every 10 Hours if operated in extremely wet conditions



Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

Apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Apply grease to fittings (B-E).

Apply grease to area between seal and bearing (F).

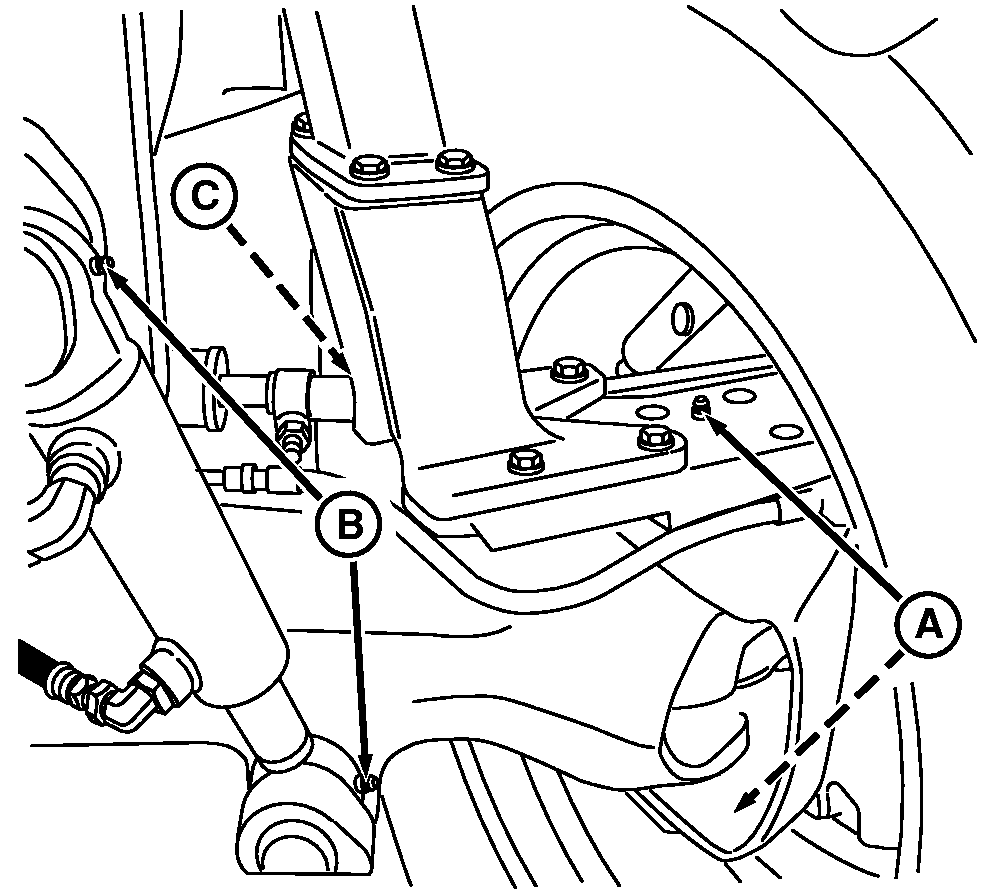

A-Kingpin Fittings
B-Cylinder Fittings
C-Tie Rod End Fitting
D-Axle Pivot Bearing Fitting (Each End)
E-Rear Bearing Support Fitting
F-Seal Barrier

RXA0068457
RXA0068458

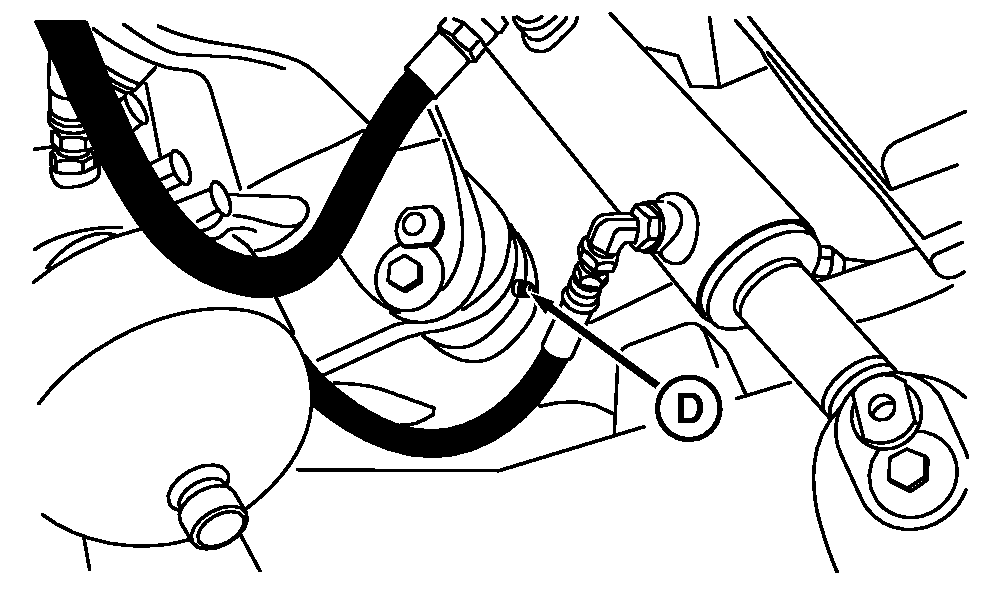

Axle Pivot Bearing (Left-Hand End Shown)

RXA0068459

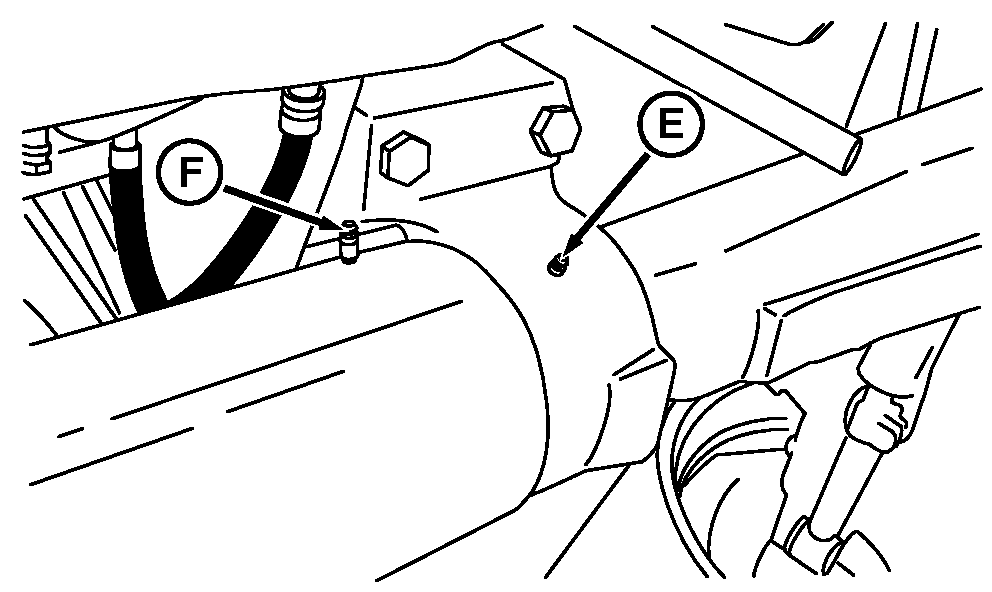

Rear Bearing Support and Seal Barrier (Under Tractor)
