Checking MFWD Axle Housing Oil Level

SERVICE INTERVAL - 250 HOURS



1. Park tractor on level surface.

2. Remove plug (A). Oil level should be just below plug hole.

3. If low, remove plug (B) and add oil until level is correct. John Deere HY-GARD oil is recommended. (See MFWD AXLE HOUSING AND WHEEL HUB OIL in Fuel, Lubricants and Coolant section.)

4. Apply pipe sealant with TEFLON, or equivalent, to threads of plug (A).

5. Install plugs and tighten to specifications.

Specification

Plugs-to-Axle Housing -Torque 70 N·m (52 lb-ft)


A-Plug
B-Plug

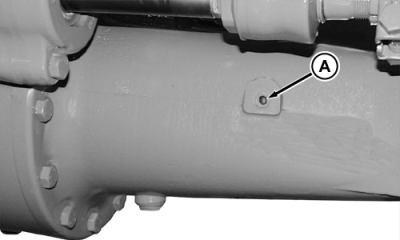

RW26476

Right-Hand Side

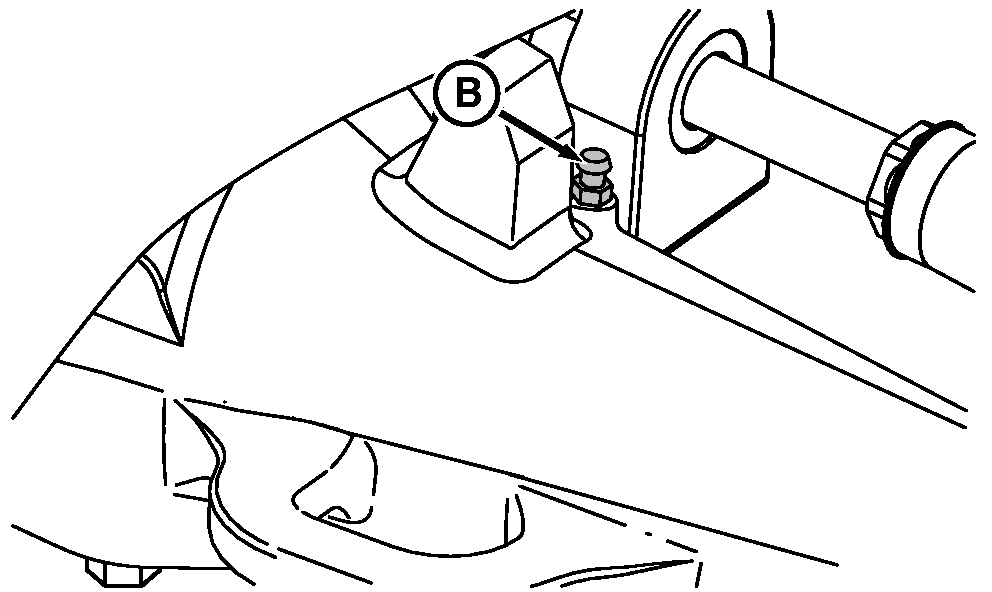

RXA0068450

Left-Hand Side

OUMX005,0001635 -19-22MAR05-1/1
