Using Rear PTO Shield-Type 3 PTO

causym CAUTION: Avoid personal injury. Put PTO shield in correct position at all times. Do not use shield as a step.

NOTE: Type 3 PTO uses 45 mm (1 3/4 in.) shaft with 20 splines.

Lift up top plate (A) to position shield assembly as follows:

  • Lowered (normal) position (B)-Use when not attached to an implement. Drawbar visibility is improved for attaching an implement.
    • Lower plate (A) to hold shield assembly in lowered position.
  • Retracted position (C)-Provides clearance while connecting implement driveline to PTO shaft.
  • Extended position (E)-Use when attached to PTO-driven implement.
    • Make sure to lower top plate (A) before engaging PTO.

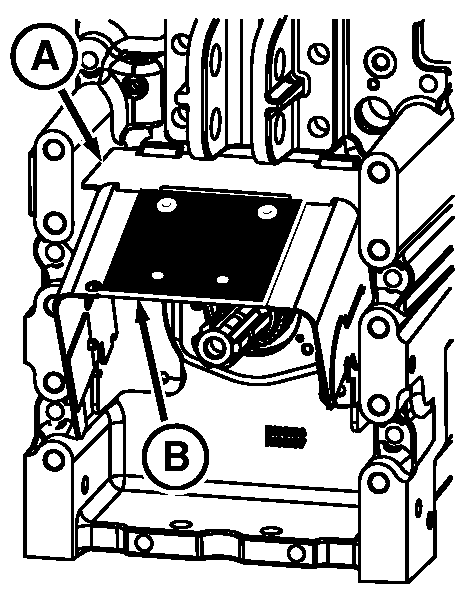

RXA0068353

Normal Position

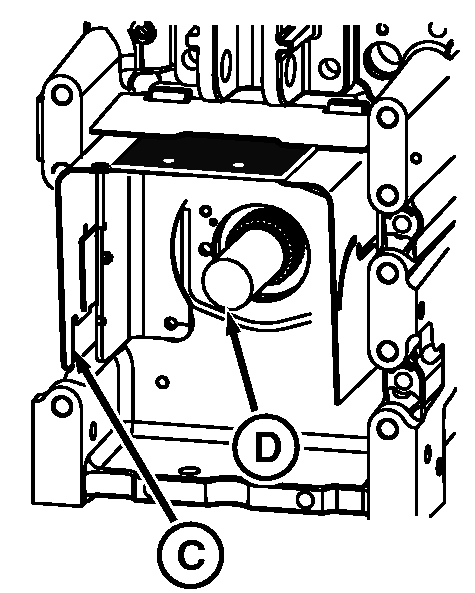

RXA0068354

Retracted Position

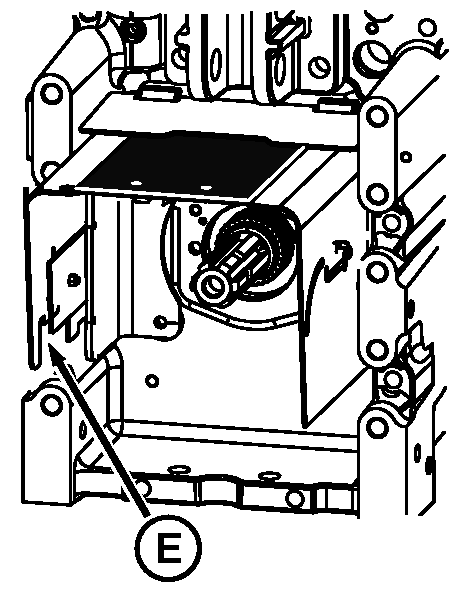

RXA0068355

Extended Position


A-Top Plate
B-Lowered (Normal) Position
C-Retracted Position
D-PTO Shaft
E-Extended Position

OUMX005,0001636 -19-10JAN06-1/1
