Replacing Water Separator Filter (6.8 L Engine)

NOTE: Use a catch pan when draining fuel and removing the filter from the tractor.

2. Open drain valve (C) and drain fuel.

3. Lift up and rotate retaining ring (A) counterclockwise. Remove ring with filter.

4. Remove separator (B) from filter. Drain and clean separator. Dry with compressed air.

5. Install water separator on new filter.

6. Install filter assembly. Tighten retaining ring.

7. Bleed the system. (See procedure in this section.)

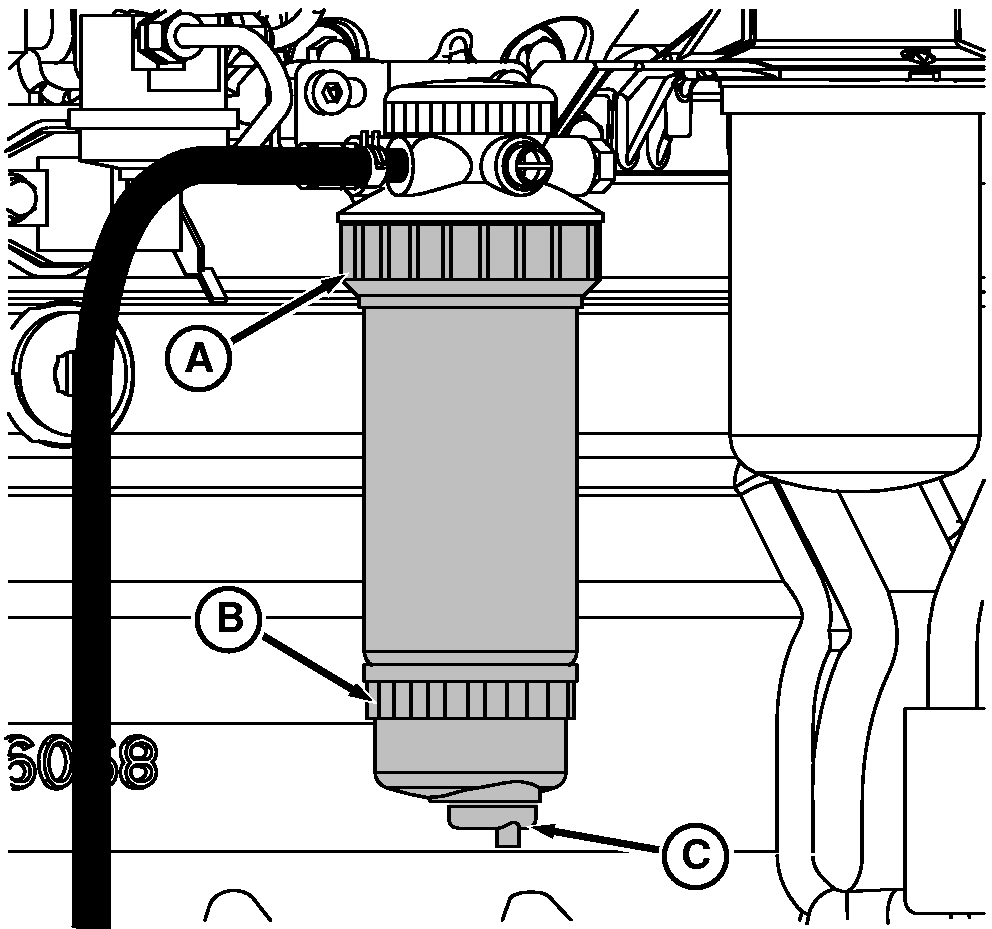

A-Retaining Ring
B-Water Separator
C-Drain Valve

OUMX005,0001643 -19-13JUL05-1/1
