CAUTION: Always shut off engine, remove key and set parking brake before performing maintenance work on fuel filter.
Drain filter by loosening bleed plug (A) and opening drain valve (C).
Turn key switch and pump the transfer pump (B) to bleed the system.

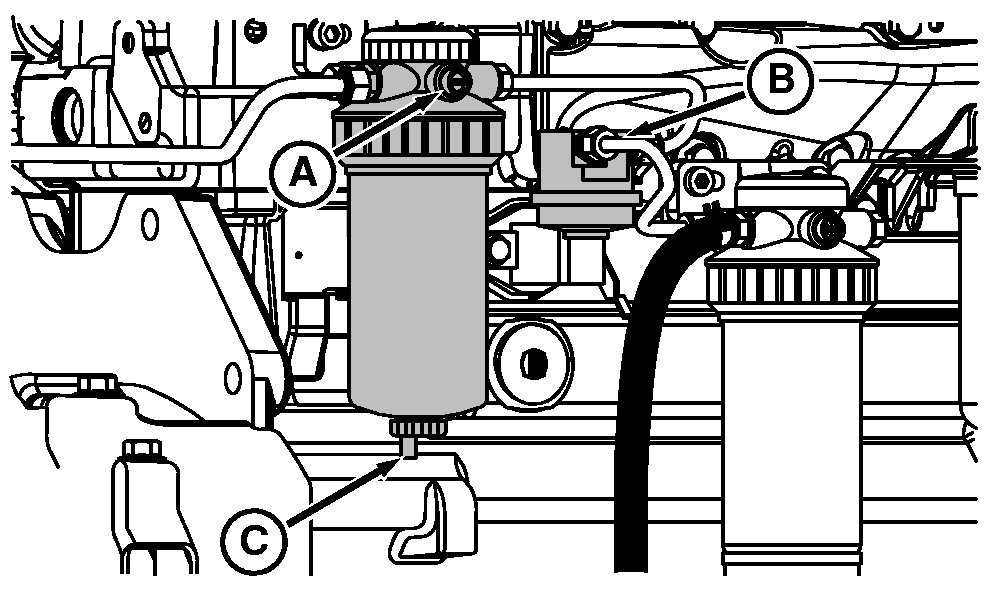

A-Bleed Plug B-Transfer Pump C-Drain Valve
OUMX005,0001645 -19-13JUL05-1/1
CAUTION:
Always shut off engine, remove key and set parking brake before performing maintenance work on fuel filter.
