Replacing Fuel Filter-6.8 L Engine

CAUTION: Always shut off engine, remove key and set parking brake before performing maintenance work on fuel filter.

NOTE: Use a catch pan when draining fuel and removing the filter from the tractor.

2. Open drain valve (B) and drain fuel.

3. Lift up and rotate retaining ring (A) counterclockwise. Remove ring with filter.

4. Install filter assembly. Tighten retaining ring.

5. Bleed the system. (See procedure in this section.)

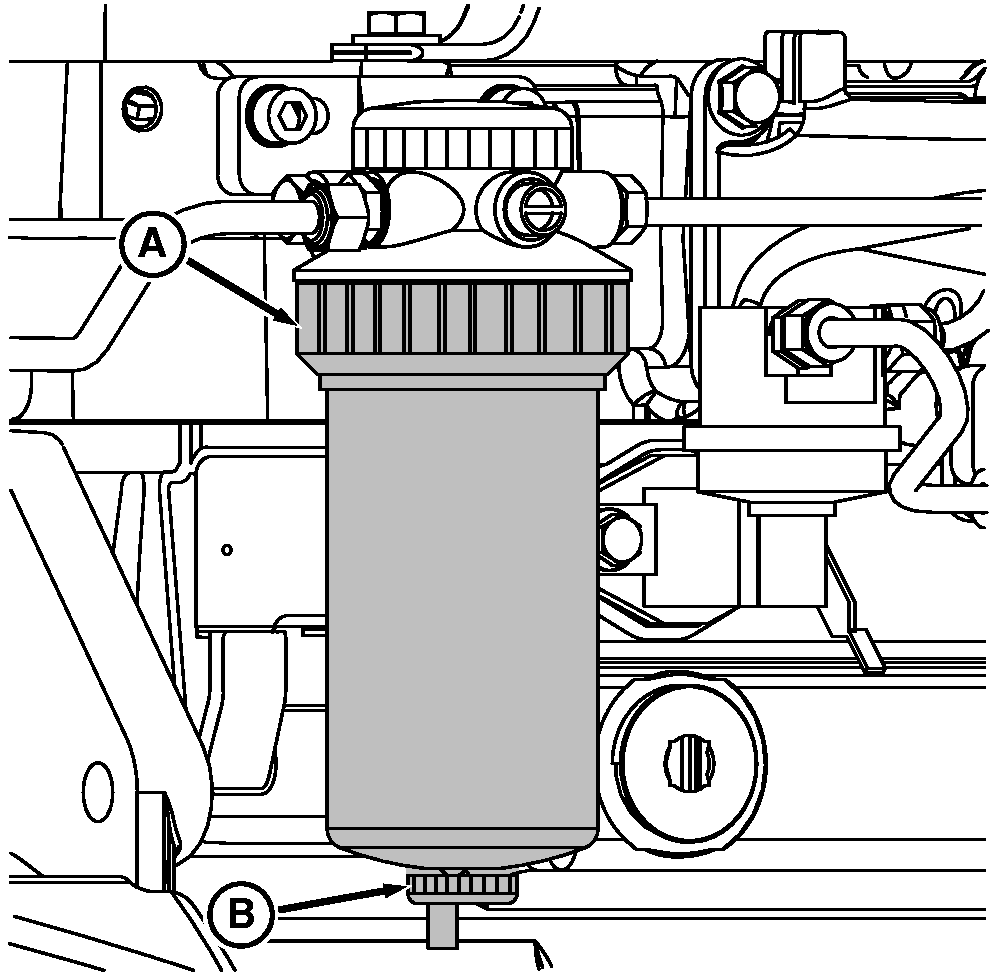

A-Retaining Ring
B-Drain Valve

OUMX005,0001649 -19-22MAR05-1/1
