Cleaning Fuel Tank Vent Filter

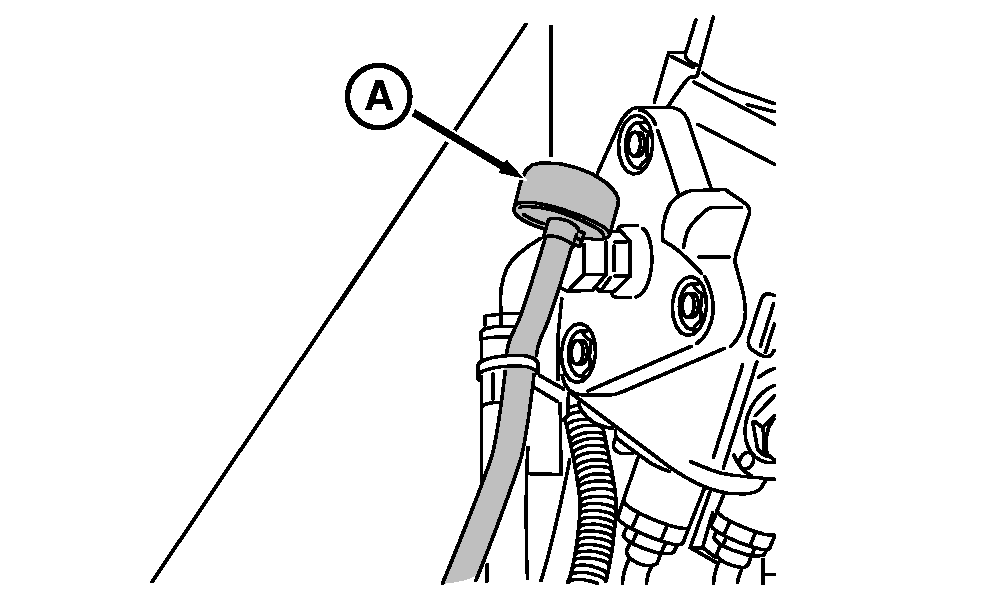

Fuel tank vent filter (A) is located behind or on left-hand side of rear SCV assembly.

Remove fuel tank vent filter and clean in soapy detergent solution.

Blow dry with compressed air and install.

A-Fuel Tank Vent Filter

OUMX005,000164C -19-15SEP05-1/1
