Draining Fuel Tank Sump
| SERVICE INTERVAL - 250 HOURS |

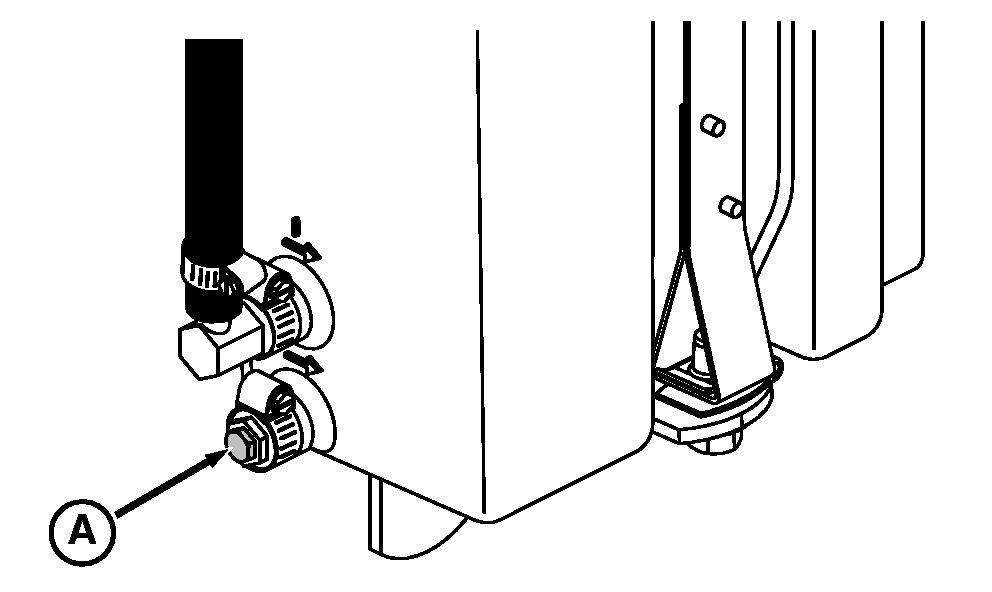

Loosen small hex plug (A), while holding large hex plug with a wrench, on both fuel tanks. Remove small plug and drain fuel tanks until water or sediment has been eliminated.
A-Hex Plug
|
Right-Hand Side Shown
|
