Replacing Front Grille Floodlight Element

1. Raise hood.

2. Disconnect wiring harness plug (B).

3. Rotate element (A) counterclockwise approximately 1/4 turn and remove.

4. Install element in reverse order of removal.

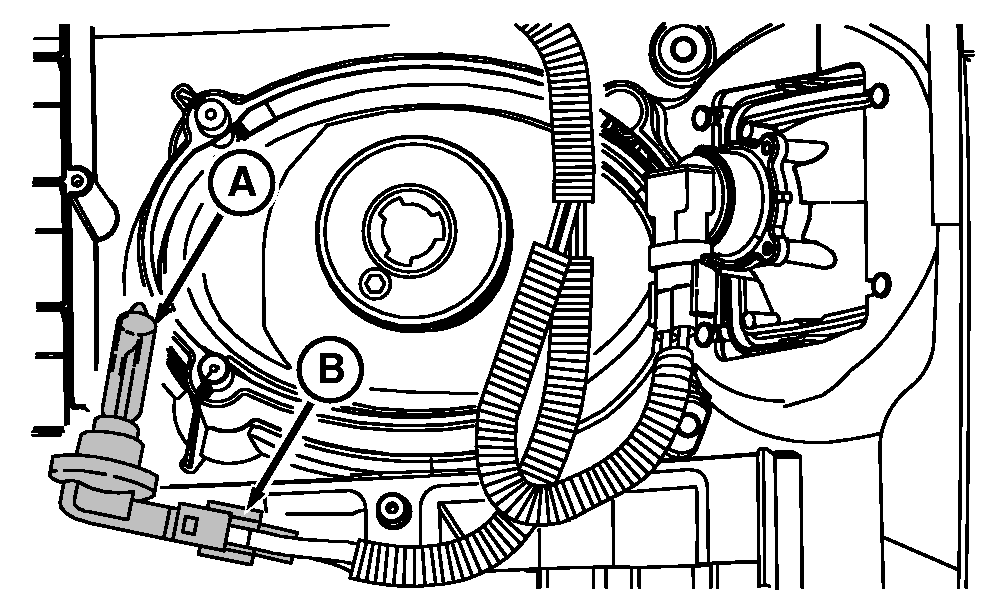

A-Element
B-Wiring Harness Plug

RXA0068499

Right-Hand Side Shown

OUMX005,0001655 -19-22MAR05-1/1
