Replacing Front Belt-Line, Cab Roof (Rear and Side) or Rear Fender Floodlight Element

1. Rotate floodlight as necessary, to access backside of light.

2. Belt-line and rear fender floodlights; Remove rubber cover.

3. Disconnect wiring harness plug (A).

4. Rotate element (B) counterclockwise approximately 1/4 turn and remove.

5. Install element in reverse order of removal.

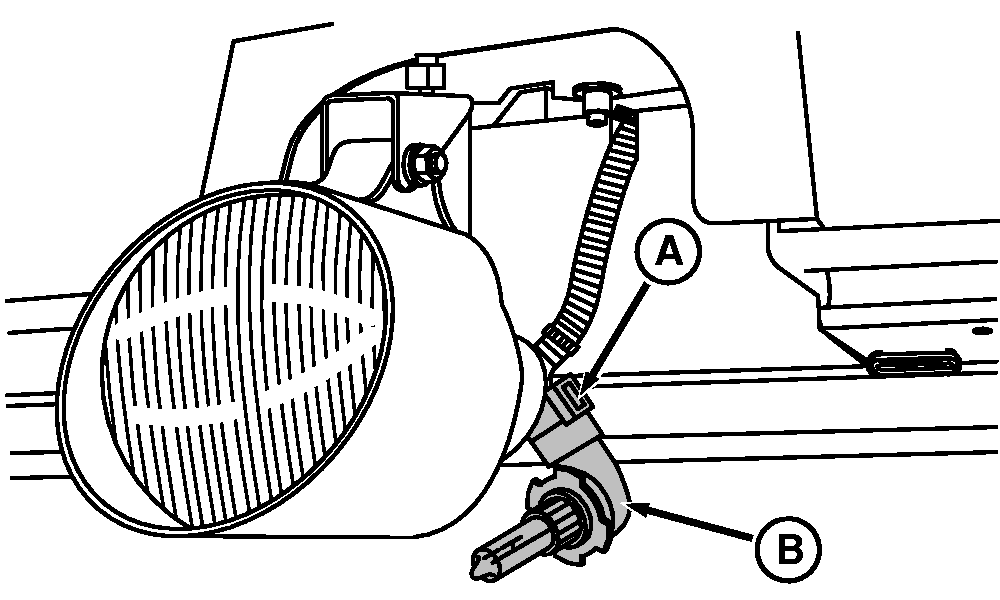

RXA0068500

Rear Cab Roof Floodlight Shown


A-Wiring Harness Plug
B-Light Element

OUMX005,0001657 -19-22MAR05-1/1
