Replacing Tail Light Bulbs

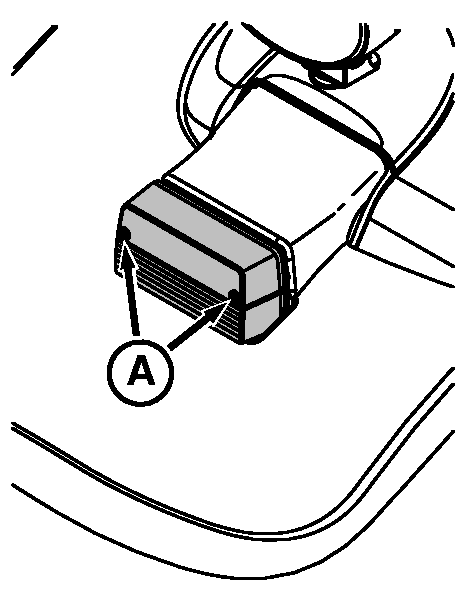

1. Remove screws and washers (A) and light assembly.

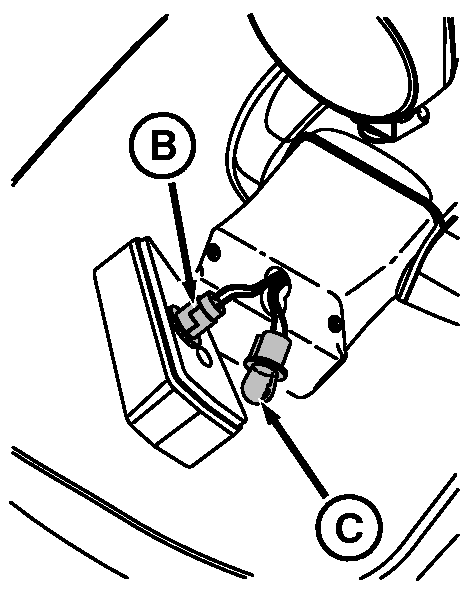

2. Rotate retainer (B or C) counterclockwise approximately 1/4 turn and remove.

3. Push in and turn light bulb counterclockwise to remove.

4. Install new bulbs in reverse order of removal.

  • Make sure to install lens with amber color UP.
RXA0068508
RXA0068509


A-Screws and Washers
B-Light Bulb Retainer
C-Light Bulb Retainer

OUMX005,000165B -19-22MAR05-1/1
